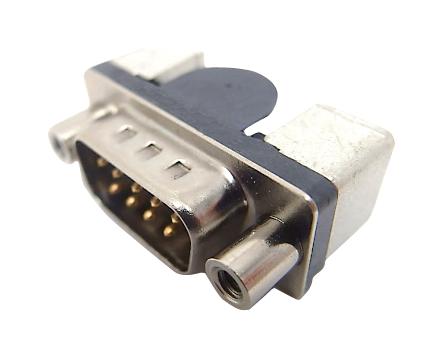

OMRON ELECTRONIC COMPONENTS XM3K091212N SMT D-sub Connector
The XM3K091212N is a high-quality SMT D-sub connector designed for surface-mount technology, offering reliable electrical connections with rated current of 3A and voltage of 300 VAC. Constructed with a durable LCP housing (UL94 V-0) and gold-plated copper alloy contacts, it ensures excellent performance and corrosion resistance. Compatible with reflow mounting, it features circuit board positioning bosses for precise assembly. These connectors withstand temperatures from -55°C to 105°C and have an insertion durability of 200 cycles, making them suitable for demanding electronic applications.
OMRON ELECTRONIC COMPONENTS XM3K091212N SMT D-sub Connector Specifications:
- Rated current: 3A
- Rated voltage: 300 VAC
- Housing Material: LCP (UL94 V-0), black
- Contact Material: Copper alloy with gold plating
- Shell Material: Steel with nickel plating
- Terminal Material: Copper alloy with tin plating
- Insulation Resistance: 1,000 MQ min. (at 500 VDC)
- Contact Resistance: 25 mQ max. (at 20 mVDC, 100 mA)
- Dielectric Strength: 1,000 VAC for 1 minute
- Ambient Operating Temperature: -55°C to 105°C
- Insertion Durability: 200 cycles
- Mounting Options: No anchors, with anchors, M3 or #4-40 UNC mounting holes
Buy the Bergquist XM3K091212N – Reliable SMT D-sub Connectors for Industrial Applications
Purchase the SMT D-sub connector now to ensure dependable electrical connections in your electronic projects. Featuring a rugged LCP housing, gold-plated contacts, and compatibility with reflow mounting, this connector is designed for durability and high-temperature environments. Perfect for industrial, automation, and control systems, it provides reliable performance with a rated current of 3A and voltage of 300 VAC. Secure your electronic assemblies with this high-quality, RoHS-compliant connector to enhance your project's efficiency and longevity.
Buy Bergquist XM3K091212N now and experience unmatched reliability and performance with high current capacity and reflow mounting compatibility.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XM3K091212N?
You can click on the BUY or RFQ button to purchase XM3K091212N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XM3K091212N?
You can download the XM3K091212N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XM3K091212N?
OMRON ELECTRONIC COMPONENTS
