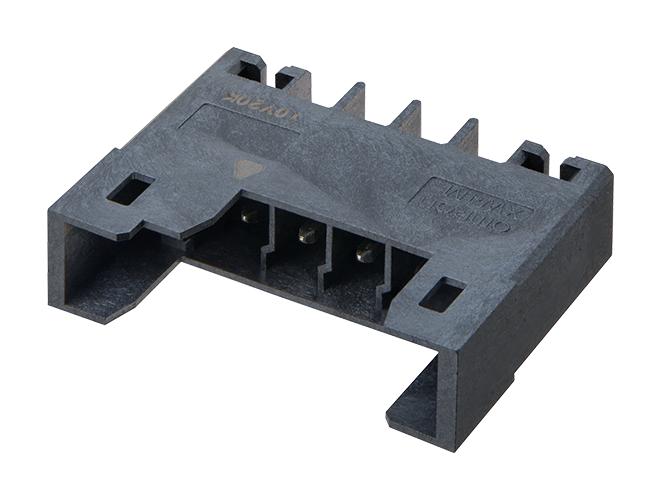

OMRON ELECTRONIC COMPONENTS XW4M16D1H1DA Push-in Terminal Block
This 3.5mm pitch push-in terminal block connector simplifies wire insertion and removal, ensuring high contact reliability and easy assembly. Suitable for reflow mounting, it features a unique engagement structure, pin numbering on the top surface, and a hands-free screwdriver mechanism for efficient wiring. Compliant with UL standards and RoHS, it supports various wire sizes, including solid and stranded wires with ferrules, rated for 300V and 160V at rated currents. Designed for reliable, safe, and quick electrical connections in industrial control systems.
OMRON ELECTRONIC COMPONENTS XW4M16D1H1DA Push-in Terminal Block Specifications:
- Pitch: 3.5mm
- Rated Voltage: 300V (UL), 160V (IEC)
- Rated Current: 10A
- Rated Withstand Voltage: 1,600 VAC 1 min
- Wire Range: Solid and stranded wire, 0.2mm² to 1.5mm²
- Ferrule Terminal Compatibility: 0.25mm² to 0.75mm²
- Stripping Length: 5mm
- Operating Temperature: -40°C to +100°C
- Materials: Housing - LCP UL94 V-0, Contacts - Copper alloy, Spring - Stainless steel
- Platings: Tin or Gold
- Standards: UL Listed, RoHS Compliant
- Applicable for through-hole reflow mounting
- Insertion Durability: 100 times
- Connector Dimensions: Refer to CAD data
Buy the Omron XW4M16D1H1DA – Reliable Push-in Terminal Block for Industrial Applications
Purchase the Omron Push-in Terminal Block connector XW4M16D1H1DA online today to ensure secure, efficient, and reliable electrical connections. This connector features a 3.5mm pitch for easy wiring, high contact reliability, and compatibility with various wire types, including solid and stranded wires with ferrules. It is UL-listed and RoHS compliant, making it suitable for industrial control panels, machinery, and automation systems. Enjoy fast delivery, competitive prices, and excellent customer support when you buy online for your wiring projects.
Buy Omron XW4M16D1H1DA now and experience unmatched reliability and performance in your industrial wiring needs.
