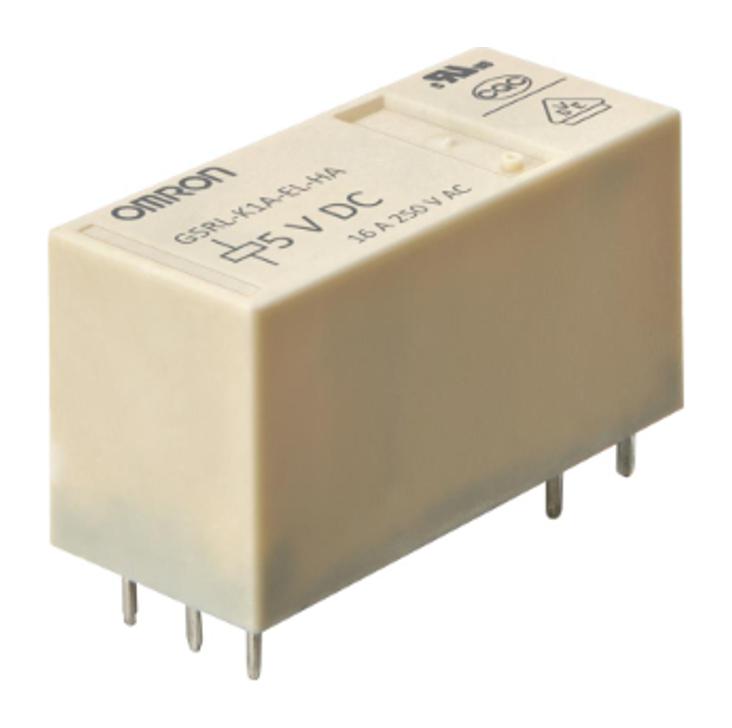

OMRON ELECTRONIC COMPONENTS G5RLK1AELHADC24 Power Relay
The G5RL-U/-K PCB Power Relay is a compact and high-performance latching relay capable of switching up to 16 A at 250 VAC, suitable for industrial automation, control systems, and household appliances. It features a creepage distance of 8 mm between coil and contacts, with an impulse withstand voltage of 10 kV, ensuring high reliability and safety. Designed to operate in ambient temperatures up to 85°C, it supports in-rush resistance, capacitor loads, and is compliant with IEC60669-1 safety standards. The relay's sturdy construction and certifications make it ideal for demanding electronic and electrical applications.
OMRON ELECTRONIC COMPONENTS G5RLK1AELHADC24 Power Relay Specifications:
- Contact form: SPST-NO (1a) or SPDT (1c)
- Rated voltage: 3 VDC, 5 VDC, 6 VDC, 12 VDC, 24 VDC
- Contact ratings: 16 A at 250 VAC, 16 A at 24 VDC, 5 A at 24 VDC (NC)
- Impulse withstand voltage: 10 kV
- Creepage distance: 8 mm between coil and contacts
- Ambient operating temperature: up to 85°C
- Electrical endurance: 50,000 operations for 16 A 250 VAC resistive load
- Switching power: up to 2000 W at 250 VAC (Tungsten)
- Coil resistance: varies by rated voltage, measured at 23°C
- Vibration resistance: 10-55 Hz, 0.75 mm amplitude
- Shock resistance: 150 ms at set status, 50 ms at reset status
- Certification: UL Recognized, CSA Certified, VDE Certified, CQC Certified
- RoHS compliant
Buy the OMRON Series G5RL PCB Power Relay: G5RLK1AELHADC24
Purchase the OMRON Series G5RL power relay online today and benefit from its high-capacity switching, in-rush resistance, and IEC60669-1 compliance. With a rated current of 16A at 250VAC and options for various coil voltages, this relay ensures dependable performance for industrial, automation, and household applications. Its compact design, 8 mm creepage distance, and high insulation withstand voltage make it ideal for demanding electronic projects. Order now and improve your systems with trusted relay technology for long-term reliability.
Order your OMRON Series G5RLK1AELHADC24 relay today and enhance your automation projects with reliable switching and safety features.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G5RLK1AELHADC24?
You can click on the BUY or RFQ button to purchase G5RLK1AELHADC24 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G5RLK1AELHADC24?
You can download the G5RLK1AELHADC24 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G5RLK1AELHADC24?
OMRON ELECTRONIC COMPONENTS
