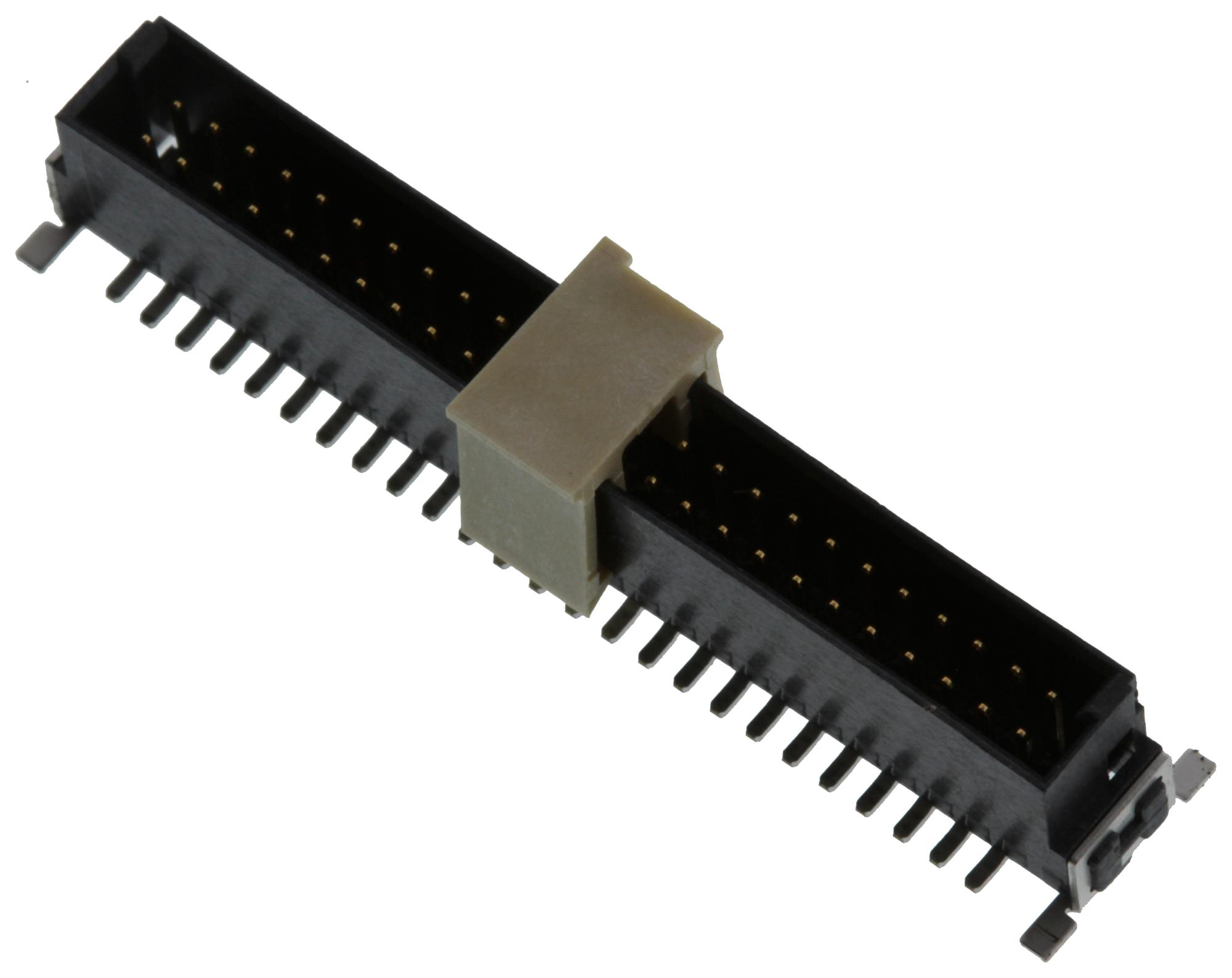

OMRON ELECTRONIC COMPONENTS XH5E50152N High-Density SMT Connectors
The XH5-N series offers high-density SMT connectors with 1.27-mm pitch, suitable for board-to-board and cable connections. These RoHS-compliant connectors support surface-mount technology with various contact configurations, stacking heights, and mounting orientations, including vertical, horizontal, and stacking types. Designed for reliable reflow mounting, they feature robust construction with gold-plated copper contacts, insulation resistance over 1000 MΩ, and dielectric strength of 500 VAC. Ideal for compact, high-performance electronic assemblies in industrial and commercial applications, they ensure secure electrical connections with precise dimensions and comprehensive standards conformity.
OMRON ELECTRONIC COMPONENTS XH5E50152N High-Density SMT Connectors Specifications:
- Pitch: 1.27 mm
- Contact Resistance: Max 20 mΩ (at 25 mA)
- Insulation Resistance: Over 1000 MΩ at 100 VDC
- Dielectric Strength: 500 VAC for 1 min
- Rated Current: 1 A per contact
- Rated Voltage: 100 VAC
- Housing Material: LCP (UL94 V-0), black
- Contact Material: Copper alloy, gold plated
- Temperature Range: -55°C to +105°C
- Soldering Conditions: Max temp 260°C within 20-40s
- Materials: PBT cover, metal cover for strain relief
- Cable compatible: AWG30 flat cable, flex-braid type
- RoHS Compliant, conforming to international standards
- Available types include terminal, hold-down, straight, right-angle, and cable with connectors
Buy the Omron XH5N – Reliable SMT Connectors for Industrial Applications
Order the high-density SMT connectors designed with 1.27-mm pitch for compact and reliable circuit board connections. These RoHS-compliant connectors support surface-mount technology, offering various contact configurations, stacking heights, and mounting orientations including vertical, horizontal, and stacking types. Engineered with gold-plated copper contacts, they provide excellent electrical performance with low contact resistance and robust dielectric strength. Suitable for industrial, commercial, and automation applications, ensure secure, high-quality connections in your electronic designs today by purchasing online easily and securely.
Buy Omron XH5N connectors now and experience unmatched reliability and performance in your electronic assemblies.
