OMRON ELECTRONIC COMPONENTS XW4M16D2H1DA Push-in Terminal Connectors
The 3.5mm-pitch Push-in Terminal Block PCB Connectors enhance wiring efficiency and insertion/removal ease with a unique engagement structure. Compatible with reflow mounting, these connectors feature standard pin identification, UL and RoHS compliance, and options for straight or right-angle terminals in single-row or double-row configurations. Made from high-quality materials like LCP, copper alloy, and stainless steel, they withstand temperatures from -40°C to +100°C, rated for 300V/160V and 1,600 VAC withstand voltage, ensuring reliable electrical connections in various industrial control and electronic applications.
OMRON ELECTRONIC COMPONENTS XW4M16D2H1DA Push-in Terminal Connectors Specifications:
- Pitch: 3.5mm
- Rated Voltage: 300V/160V
- Rated Current: 5A
- Withstand Voltage: 1,600 VAC 1 min
- Material: LCP UL94 V-0, Copper Alloy, Stainless Steel
- Temperature Range: -40°C to +100°C
- Wire Range: Solid and stranded wire from 0.2mm² to 1.5mm²
- Contact Finish: Tin or Gold plating, depending on model
- Insertion durability: 100 cycles
- Compliance: UL File No. E245101, RoHS
- Applicable wire: AWG 24-16, cross section 0.2-1.5mm²
- Connector types: Single-row and Double-row, straight and right-angle
- Housing: UL94 V-0 rated PA, PBT

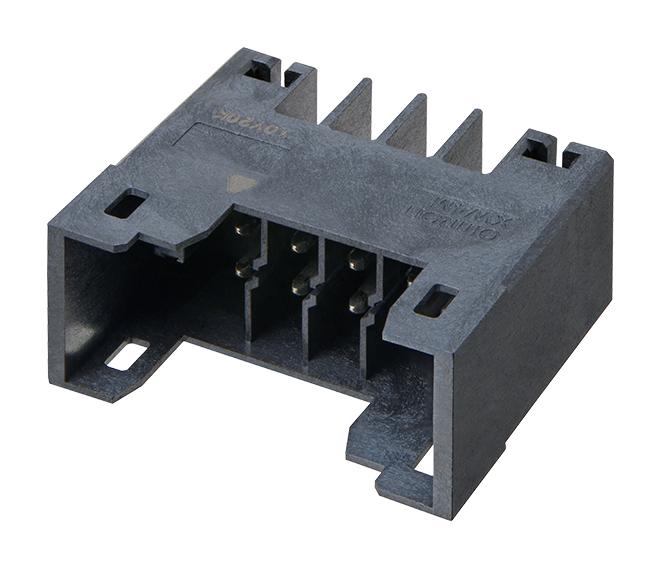

Buy the Buy OMRON 3.5mm-pitch Push-in Terminal Block PCB Connectors Part Number XW4M16D2H1DA Online
Purchase the OMRON SeriesXW4M16D2H1DA push-in terminal connectors online today. Designed for quick wiring, reliable contact, and durable operation, these connectors are suitable for a wide range of industrial and electronic applications. With features like compatibility with reflow mounting, UL and RoHS compliance, and options for straight or right-angle configurations, they provide high-quality solutions for efficient assembly and maintenance. Guarantee dependable electrical connections with these top-grade PCB connectors now.
Order your OMRON SeriesXW4M16D2H1DA high-reliability PCB connector today and ensure secure, efficient wiring for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XW4M16D2H1DA?
You can click on the BUY or RFQ button to purchase XW4M16D2H1DA from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XW4M16D2H1DA?
You can download the XW4M16D2H1DA datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XW4M16D2H1DA?
OMRON ELECTRONIC COMPONENTS
