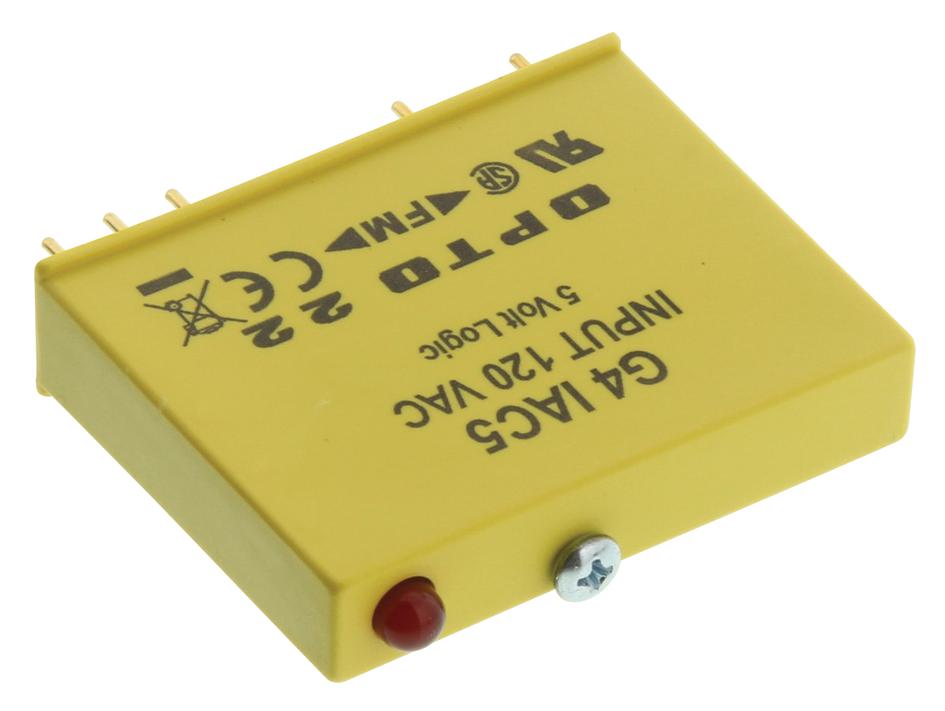

OPTO 22 G4IAC5 AC Input Module
The G4IAC5 is a 5mA AC input module designed to detect on/off signals within a voltage range of 90 to 140VAC/VDC, operating with a 5V DC logic voltage. It provides up to 4,000V of transient optical isolation between field inputs and the logic output, ensuring high noise immunity and transient-free switching. Features include filtering on the input, a hysteresis amplifier for stable operation, a built-in LED status indicator, small footprint design, input resistance of 28kΩ, and a wide operating temperature range from -30°C to 70°C. Typical turn-on and turn-off times are 20 milliseconds. Suitable applications include motor drive and industrial control systems.
OPTO 22 G4IAC5 AC Input Module Specifications:
- Input voltage range: 90-140 VAC or VDC
- Input current at maximum line: 5 mA
- Isolation, input-to-output (transient): 4000 V
- Turn-on time: 20 ms
- Turn-off time: 20 ms
- Input resistance: 28K ohms
- Nominal output supply voltage: 5 VDC
- Output supply voltage range: 4.5-6 VDC
- Output supply current at nominal logic voltage: 12 mA
- Maximum input allowed in off-state: 1.4 V, 40 mA
- Output voltage drop: 0.4 V at 50 mA
- Output leakage with no input: 30 microamps
- Transistor V breakdown: 30 V
- Operating temperature: -30°C to 70°C
- Storage temperature: -30°C to 85°C
Buy the Opto 22 Series G4 G4IAC5 AC Input Module: G4IAC5
Purchase the Opto 22 G4IAC5 AC input module online today and benefit from robust optical isolation up to 4000V, filtering for noise rejection, compact size, and reliable 20ms switching. Ideal for industrial automation, motor drives, and control systems, this module ensures precise detection of AC signals from 90 to 140VAC. Its built-in LED status indicator helps diagnostics, while the wide temperature range guarantees operation in harsh environments. Order now for high-performance, noise-immune signal detection in your automation setup.
Buy Opto 22 G4IAC5 now and experience unmatched reliability and performance in industrial signal detection with high isolation and noise immunity.
Frequently Asked Questions
Where can I buy OPTO 22 G4IAC5?
You can click on the BUY or RFQ button to purchase G4IAC5 from an authorized OPTO 22 distributor.
How do I troubleshoot issues or seek technical support for part G4IAC5?
You can download the G4IAC5 datasheet or visit the OPTO 22 website for support.
Who is the manufacturer of G4IAC5?
OPTO 22
