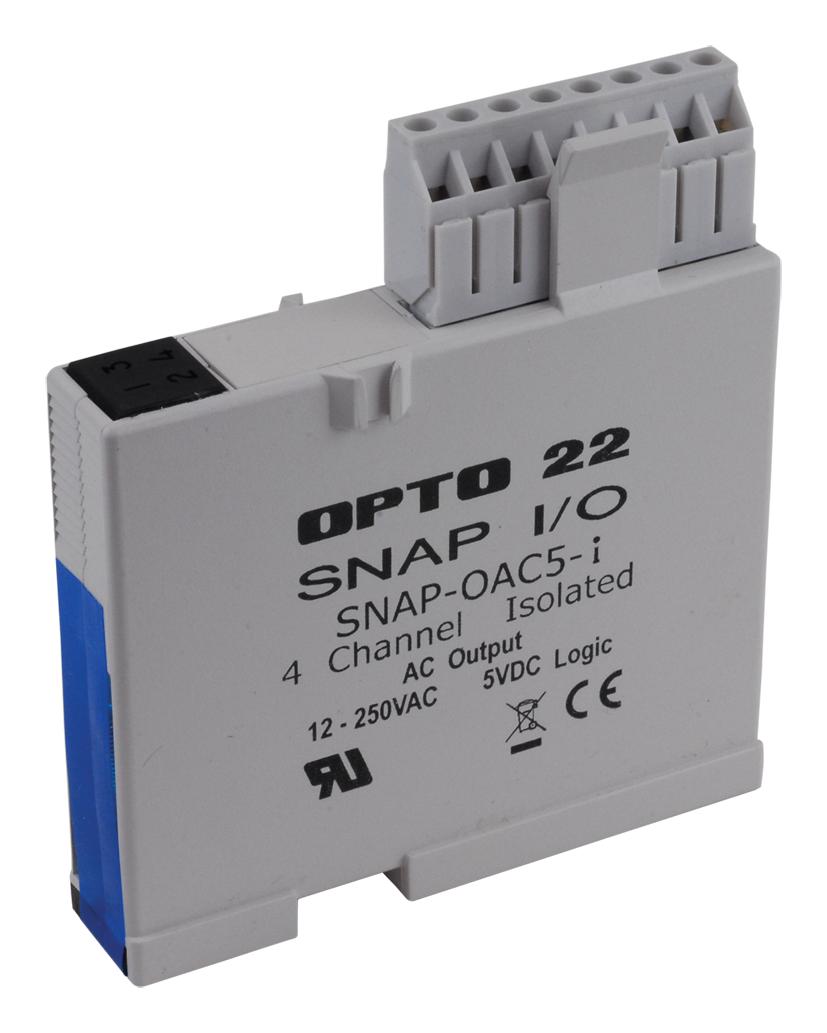

OPTO 22 SNAPOAC5I Digital Output Module
The SNAP-OAC5-I is a digital output module featuring four isolated channels capable of switching AC loads ranging from 12V to 250VAC. It utilizes zero voltage turn-on and zero current turn-off technology to ensure transient-free switching. Each channel has a dedicated LED indicator for troubleshooting. Designed for the SNAP PAC System, it mounts on a SNAP PAC rack alongside a controller or brain, and is compatible with analog, digital, and serial I/O modules within the same rack. This module is also suitable for PC-based control or as remote I/O for PLC systems such as Allen-Bradley MicroLogix, ControlLogix, or CompactLogix. Key specifications include a peak blocking voltage of 500V, a control resistance of 220Ω, and 4000V of transient isolation between the field side and logic side. It supports wiring ranges from 14 to 22 AWG. Typical applications include industrial automation and process control.
OPTO 22 SNAPOAC5I Digital Output Module Specifications:
- Number of Channels Per Module: 4
- Load Sourcing/Sinking: Sourcing and sinking options available
- Line Voltage Range: 12-250 VAC
- Nominal Line Voltage: 120/240 VAC
- Peak Blocking Voltage: 500 V
- Output Voltage Drop: 1.6 volts max. @ 0.75 amps
- Surge Current: 80 amps peak for 1 cycle (50/60 Hz)
- Minimum Load: 20 mA
- Control Resistance: 220 ohms
- Logic Supply Voltage: 5 VDC + 0.25 VDC
- Logic Supply Current: 50 mA maximum
- Turn-on Time: 0.5 cycle maximum (zero volts crossover)
- Turn-off Time: 0.5 cycle maximum (zero current crossover)
- Isolation (Field Side to Logic Side): 4,000 volts (transient)
- Wire Size Range: 22 to 14 AWG
- Operating Temperature: -20 to 70 °C
- Storage Temperature: -40 to 85 °C
- Agency Approvals: CE, FM, RoHS, DFARS
- Warranty: Lifetime
Buy the Opto 22 Series SNAP OAC5I: AC Digital Output Module
Enhance your automation system with the Opto 22 SNAP OAC5I digital output module. Featuring four isolated channels, zero voltage turn-on, and LED troubleshooting indicators, it ensures safe, transient-free switching of AC loads from 12V to 250VAC. Designed for seamless integration into SNAP PAC Systems, it fits on standard racks next to controllers or brains. Provides 4000V transient isolation, support for 14-22 AWG wiring, and is ideal for industrial automation, process control, and remote system applications. Easy to install and durable, it guarantees reliable performance in demanding environments.
Buy Opto 22 SNAP OAC5I now and experience unmatched reliability and high-speed switching for industrial automation applications.
