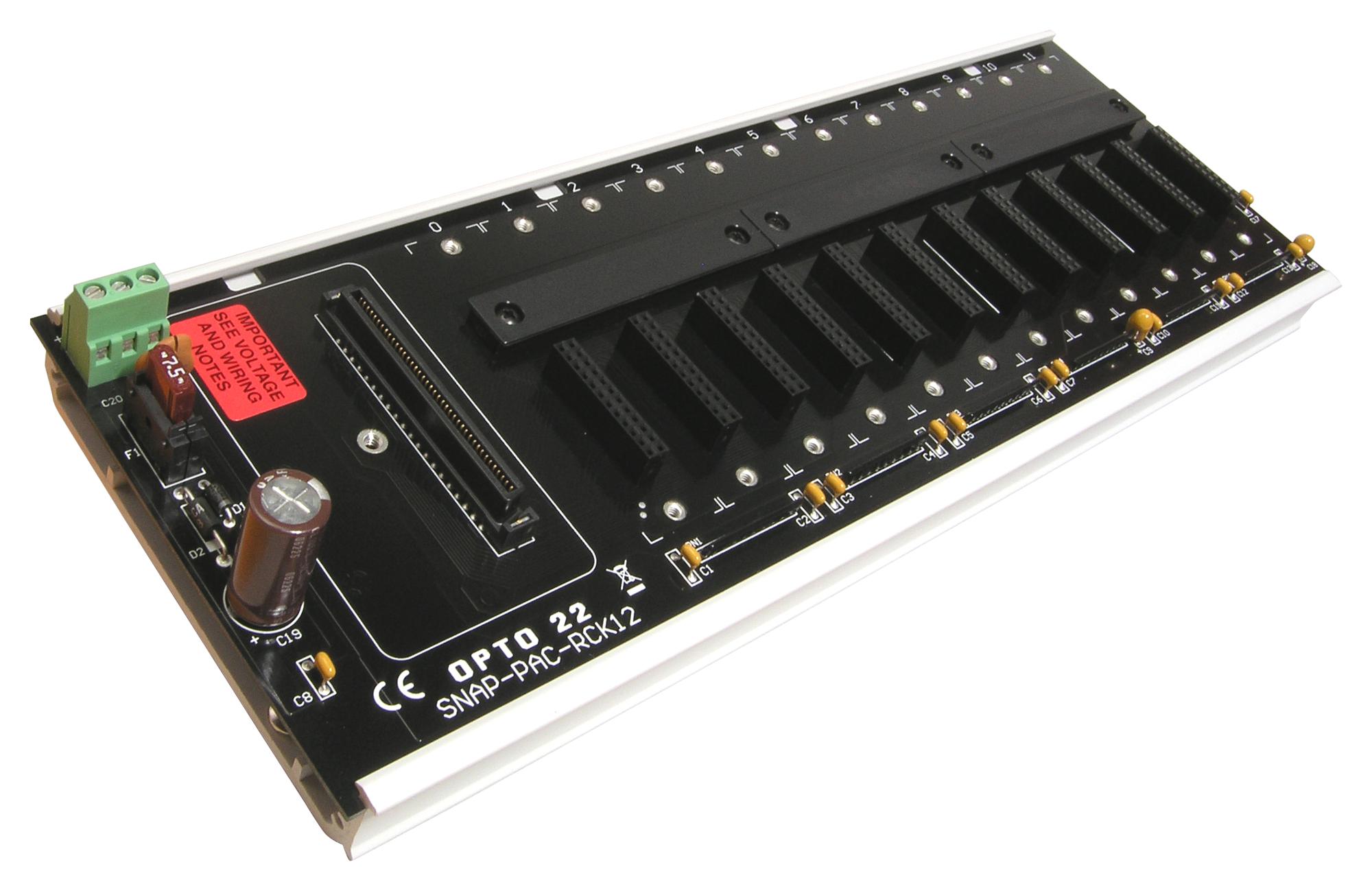

OPTO 22 SNAPPACRCK12 I/O Mounting Rack
The SNAP PAC RACK12 is a versatile mounting rack designed for industrial automation and process control systems. It holds one SNAP PAC brain or rack-mounted controller, supporting up to 12 analog, digital, serial, or specialized I/O modules. The rack allows mixing different module types in any position and can be mounted on DIN rails or panels for flexible installation. It requires 5 VDC power with terminals supporting 22 to 14 AWG wiring, operating reliably in environments up to 70°C and 95% humidity. This rack enhances distributed control architectures with easy module snap-in design and optional securing screws.
OPTO 22 SNAPPACRCK12 I/O Mounting Rack Specifications:
- Power Requirements: 5.0 to 5.2 VDC @ 4.2 Amps max
- Compatible controllers: SNAP-PAC-R1, R2, EB1, EB2, and FM models
- Wire Terminals: 22 to 14 AWG
- Operating Temperature: 0 to 70°C
- Relative Humidity: 95%, non-condensing
- Module Capacity: Up to 12 I/O modules
- Mounting Options: Panel and DIN-rail
- Overall Length: 5.01 inches (127.25 mm)
- Dimensions: 4.45 in (112.01 mm) width, 5.01 in (127.25 mm) length
- Factory Mutual Approval: Yes for FM models
Buy the Opto 22 SNAPPACRCK12 – Reliable I/O Mounting Rack for Industrial Applications
Order the Opto 22 SNAPPACRCK12 online today and experience a reliable, expandable I/O mounting rack perfect for industrial automation and process control. With support for up to 12 modules, DIN and panel mounting options, and compatibility with various controller models, this rack simplifies system configuration and enhances distributed control. Its robust design ensures stable operation in harsh environments with wide temperature and humidity ranges. Perfect for building scalable and flexible automation systems, order now for fast delivery and seamless integration into your control architecture.
Buy Opto 22 SNAPPACRCK12 now and enhance your industrial automation system with flexible, expandable I/O mounting solutions.
