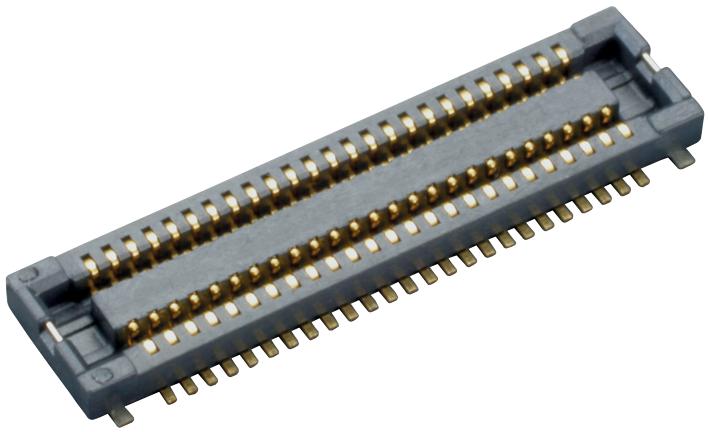

Panasonic AXT550124 Board-to-FPC Connector
The AXT550124 is a high-reliability, 0.4mm pitch narrow connector designed for board-to-FPC and board-to-board applications. It offers 3,000 mating cycles, enhanced mating retention with simple locking, and RoHS compliance. Featuring a compact design with dimensions compatible with standard types, it ensures precise alignment and easy connection/disconnection. The connector construction includes Ni barrier bellows contacts against solder rise, corrosion, and foreign particles. Suitable for mobile devices, industrial equipment, and inspection modules, it guarantees high contact reliability and durability in demanding environments.
Panasonic AXT550124 Board-to-FPC Connector Specifications:
- Rated current: 0.3A/pin contact (Max. 5 A at total pin contacts)
- Rated voltage: 60V AC/DC
- Insulation resistance: Min. 1,000MO (initial)
- Contact resistance: Max. 90mΩ
- Maximum insertion/removal force: 0.981N
- Maximum removal/holding force: Min. 0.165N
- Operating temperature: -55°C to +85°C
- Soldering heat resistance: 260°C peak, 150°C for 25-70 seconds
- Materials: Molded LCP resin, nickel and gold plating for contact portions
- Durability: 3,000 mating cycles
- Dimensions: Compatible with standard footprint, with mated heights of 1.0mm and 1.2mm
- RoHS compliant: Yes
Buy the Panasonic AXT550124 – Reliable connectors for Industrial Applications
Enhance your electronic designs with Panasonic’s high-quality, 0.4mm pitch narrow connectors. Offering 3,000 mating cycles, RoHS compliance, and superior durability, these connectors are ideal for mobile devices, industrial equipment, and inspection modules. Their compact design ensures easy handling and reliable connection in tight spaces. Perfect for board-to-FPC and board-to-board applications, they support demanding environments with high contact reliability. Order online now to secure this key component for your manufacturing or repair projects, ensuring optimal performance and longevity in every application.
Order your Panasonic Series AXT550124 durable connector today and ensure high performance and long-lasting reliability for your industrial projects.
Frequently Asked Questions
Where can I buy Panasonic AXT550124?
You can click on the BUY or RFQ button to purchase AXT550124 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AXT550124?
You can download the AXT550124 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AXT550124?
Panasonic
