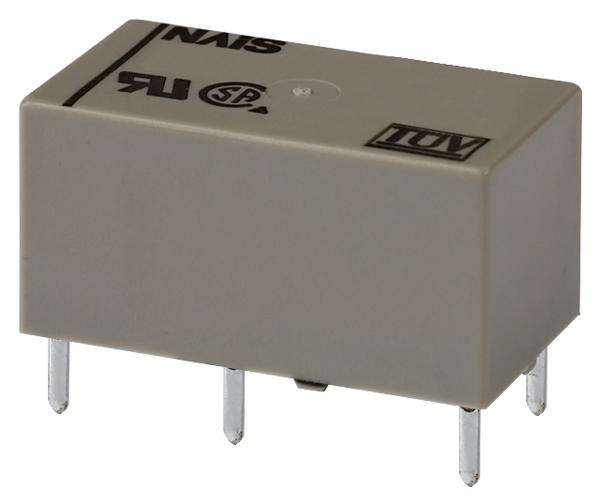

Panasonic DSP1DC24VF General Purpose 24V DC Relay
This is a general-purpose relay with a 24 V DC coil featuring one normally open and one normally closed contact configuration adaptable for diverse switching needs. Designed for high reliability, it supports current loads up to 8 amps and is suitable for PCB mounting. The relay operates as a single side stable type, ensuring consistent performance in industrial and electronic applications such as control systems, automation, and device switching. It complies with safety and RoHS standards, making it ideal for both professional and DIY projects requiring robust relay solutions.
Panasonic DSP1DC24VF General Purpose 24V DC Relay Specifications:
- Coil Voltage: 24 V DC
- Contact Arrangement: SPST-NO, SPST-NC
- Maximum Switching Current: 8 A
- Maximum Switching Power: 2,000 VA
- Initial Contact Resistance: Max 30 mΩ
- Insulation Resistance: 1,000 MΩ at 500 V
- Dielectric Strength: 3,000 Vrms between terminals
- Contact Material: Au-flashed AgSnO type
- Maximum Operating Voltage: 250 V AC
- Maximum Operating Current: 5 A AC
- Operating Time: Max 10 ms
- Release Time: Max 10 ms
- Operating Temperature: -55°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 20.2 mm (H) x 11 mm (W) x 20 mm (L)
- Mounting: PCB compatible
- Standards: RoHS compliant, UL, CSA approved
Buy the Panasonic Series DS-P 24V DC Relay: DSP1DC24VF
Upgrade your control systems with the Panasonic Series DS-P 24V DC Relay. Featuring 8A switching capacity with SPST configurations, compact PCB mounting, and RoHS compliance, this relay guarantees dependable operation in automation, industrial control, and electronic devices. Its robust construction and fast operate and release times ensure efficiency and durability. Whether for new installations or replacements, buy online now to enhance your project reliability and performance with a trusted relay solution that meets safety standards and international certifications.
Order your Panasonic Series DS-P 24V DC Relay DSP1DC24VF today and ensure reliable switching performance for industrial and electronic control projects.
Frequently Asked Questions
Where can I buy Panasonic DSP1DC24VF?
You can click on the BUY or RFQ button to purchase DSP1DC24VF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part DSP1DC24VF?
You can download the DSP1DC24VF datasheet or visit the Panasonic website for support.
Who is the manufacturer of DSP1DC24VF?
Panasonic
