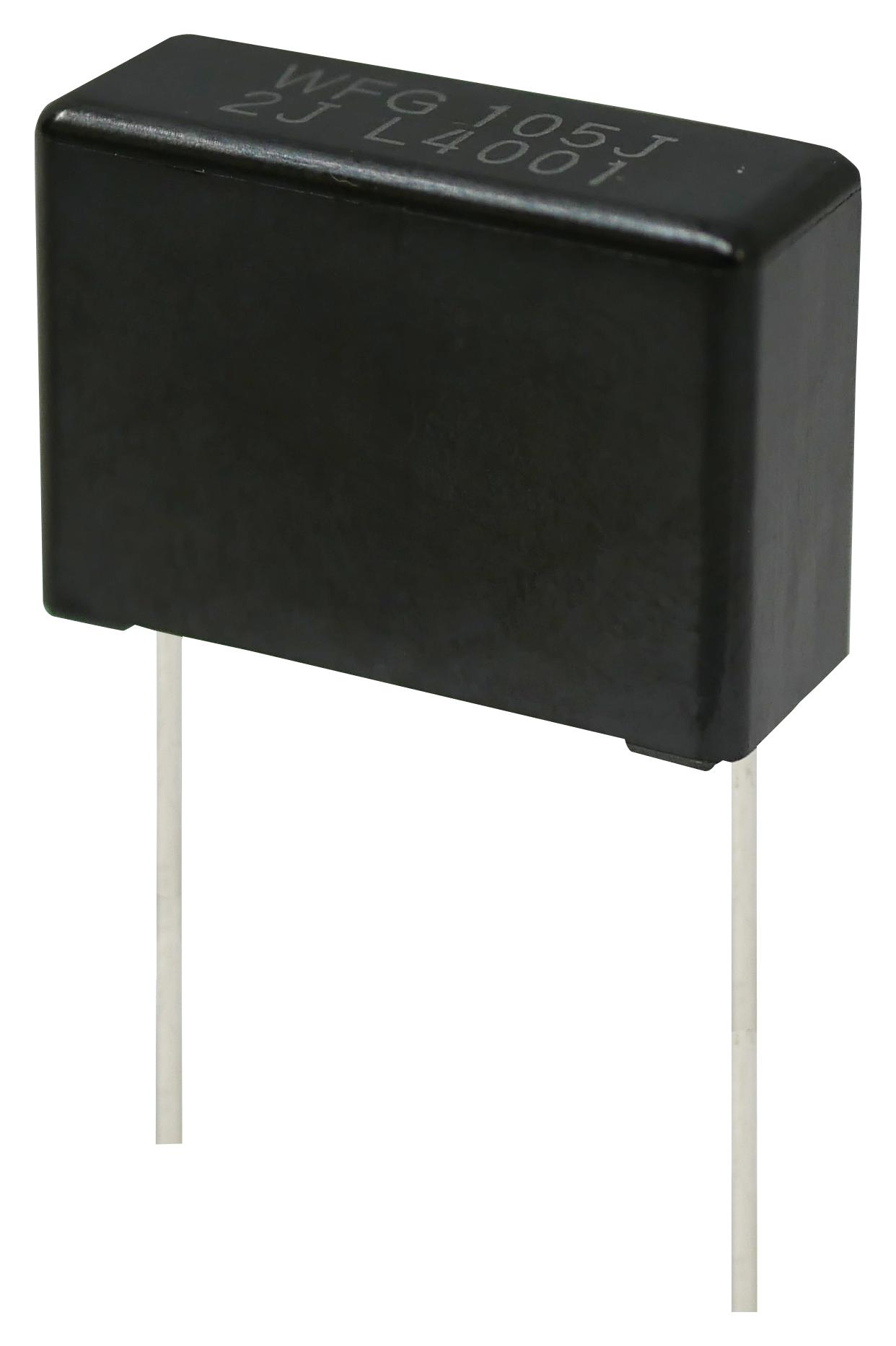

Panasonic ECWFG2J225J Automotive Film Capacitor
The metallized polypropylene film capacitor series offers high safety with safety function, moisture resistance at 85°C, and flame-retardant plastic case for automotive and industrial applications. Designed to withstand thermal shock from -55°C to 85°C and high voltage load tests up to 1100 V, these capacitors are suitable for DC/DC, AC/DC converter circuits, and high-frequency, high-current applications. Compliant with RoHS and AEC-Q200 standards, they feature various capacitance values, lead pitches, and voltages, ensuring reliable performance in demanding environments.
Panasonic ECWFG2J225J Automotive Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance: 1.0 pF to 12.0 μF
- Capacitance tolerance: ±5% (J), ±10% (K)
- Lead pitch: 22.5 mm or 27.5 mm
- Temperature range: -55°C to 85°C
- Dissipation factor (tan d): 0.1% (20°C, 1 kHz)
- Insulation resistance: 3,000 MΩ-μF at 20°C, 500 V DC
- Voltage derating: at >85°C, derate by 1.0%/°C
- Features: Flame-retardant plastic case, high moisture resistance, high thermal shock resistance (600 to 1100 V: -55°C to 85°C, 1000 cycles), RoHS and AEC-Q200 compliant
- Application: Automotive circuits, high-frequency/high-current applications, DC/DC and AC/DC converters, noise suppression
Buy the Panasonic ECWFG – Reliable Metallized Polypropylene Film Capacitor for Automotive Applications
Purchase Panasonic automotive film capacitors online—engineered for reliable performance in high-voltage and high-frequency applications. These capacitors feature high safety standards, moisture resistance at 85°C, flame-retardant casing, and compliance with RoHS and AEC-Q200 certifications. Available in various capacitance values up to 12 μF and rated voltages up to 1100 V, they are ideal for advanced automotive circuits, noise suppression, and high-current environments. Enjoy fast delivery and technical support when you buy online today, ensuring your equipment operates safely and efficiently over the long term.
Get Panasonic ECWFG today—built for precision and long-lasting durability in automotive and industrial circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J225J?
You can click on the BUY or RFQ button to purchase ECWFG2J225J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J225J?
You can download the ECWFG2J225J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J225J?
Panasonic
