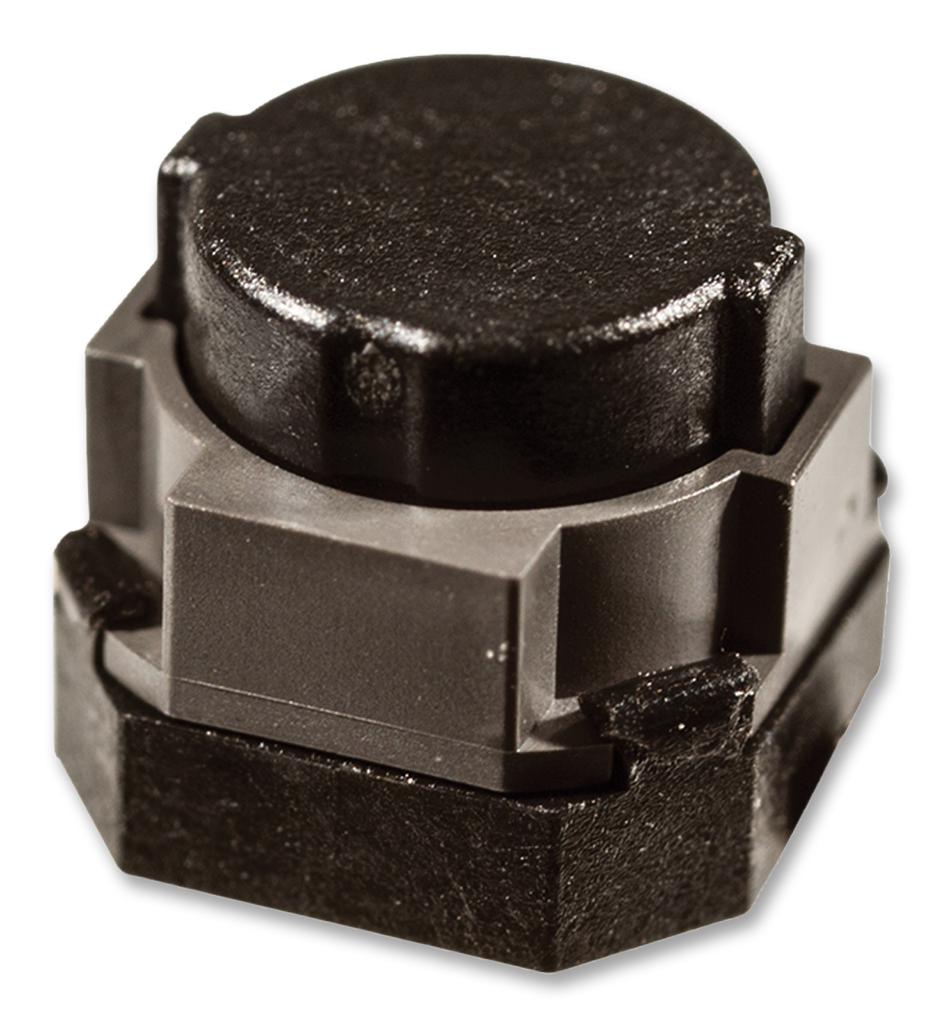

Panasonic EVPASCB1A Light Touch Switch
This light touch switch features a compact 6 mm x 6.1 mm footprint with a height of 5 mm, including the push plate. It offers low contact resistance of 100 mΩ, excellent solderability with J-bent terminals, and is ideal for automotive, electronic musical instruments, and telephone switching applications. The switch is snap action, SPST type, rated for resistive loads up to 50 mA at 12 VDC, with an operating temperature range from -40°C to +90°C and durable for up to 100,000 cycles. Its reliable, miniature design makes it suitable for various electronic devices requiring precise touch activation.
Panasonic EVPASCB1A Light Touch Switch Specifications:
- Dimensions: 6.0 mm x 6.1 mm x 5.0 mm (including push plate)
- Operating Force: 1.6 N (standard), 2.0 N, 2.2 N, 3.0 N, 3.5 N, 25 N options available
- Travel: 1.0 mm to 1.3 mm, end travel roughly 1.0 mm
- Contact Resistance: 100 mΩ max.
- Rating: 10 pA at 2 Vdc, up to 50 mA at 12 Vdc (resistive load)
- Dielectric Withstanding Voltage: 250 Vac for 1 min
- Operating Temperature: -40°C to +90°C
- Mechanical Operating Life: Up to 100,000 cycles
- Material: Metal and plastic components with solderable terminals
- Insulation Resistance: 100 MΩ min. at 100 Vdc
- Bouncing: 10 ms max.
Buy the Buy Panasonic Light Touch Switches Part Number EVPASCB1A Online
Order the Panasonic EVPASCB1A Light Touch Switch online today and enjoy quick delivery and trusted quality. Its compact size and low contact resistance make it ideal for automated systems, electronic musical instruments, telephones, and automotive electronics. With a rated current of 50 mA at 12 VDC, the switch offers excellent durability, up to 100,000 cycles. Its operating temperature from -40°C to +90°C ensures reliable performance in various environments. Perfect for ensuring precise, responsive controls in compact electronic designs.
Buy Panasonic EVPASCB1A now and experience reliable, precise touch activation suitable for automotive, musical, and communication equipment.
Frequently Asked Questions
Where can I buy Panasonic EVPASCB1A?
You can click on the BUY or RFQ button to purchase EVPASCB1A from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVPASCB1A?
You can download the EVPASCB1A datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVPASCB1A?
Panasonic
