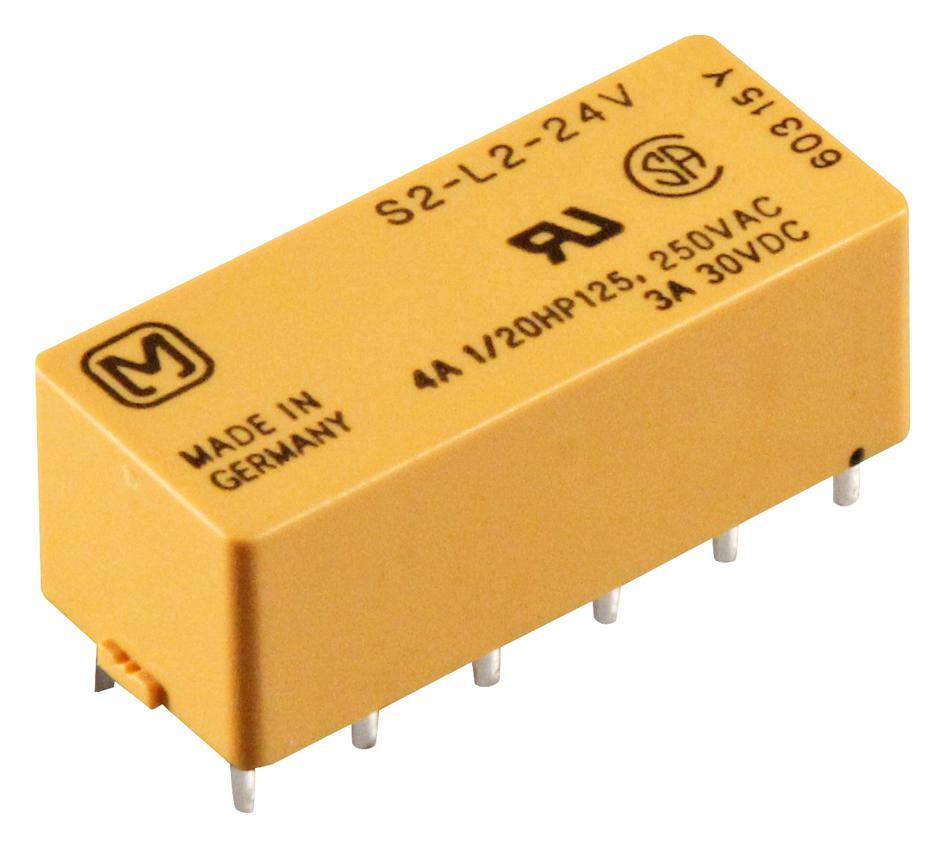

Panasonic S2L2DC24V Industrial Power Relay
The S series power relay features a 4A current capacity, multiple contact arrangements, and high sensitivity with a 100mW pick-up power. It is engineered for reliability in industrial environments, offering high shock resistance of 50G and vibration resistance from 10 to 55Hz at 3mm amplitude. Available in single side stable and latching types, it provides a broad switching range from 100µA at 100mV DC to 4A at 250VAC. Low thermal electromotive force (~3µV) enhances performance in power management and automation systems.
Panasonic S2L2DC24V Industrial Power Relay Specifications:
- Current Capacity: 4A
- Switching Range: 100µA at 100mV DC to 4A at 250VAC
- Pick-up Power: 100mW
- Nominal Operating Power: 200mW
- Shock Resistance: 50G
- Vibration Resistance: 10 to 55Hz at 3mm amplitude
- Maximum Contact Resistance: 50mΩ
- Initial Insulation Resistance: 10,000 MΩ at 500V DC
- Breakdown Voltage: 1,500 Vrms between terminals
- Operating Temperature: -40°C to +105°C
- Coil Resistance: Ranges from approximately 16.8Ω (24V coil) to 84Ω (12V coil)
- Dimensions: As per datasheet, with PCB pattern of 2.54mm terminal pitch
- Material: Gold clad silver alloy contacts, epoxy-sealed header
- Connection Method: Insert relay into socket with rib locking
- Weight: Approx. 8g
Buy the Panasonic S2L2DC24V – Reliable Power Relay for Industrial Applications
Experience reliable power switching with the Panasonic S series relay, designed for industrial automation, data processing, and measurement equipment. With a capacity of 4A and a wide switching range up to 250VAC, it ensures robust performance under harsh conditions. Its high shock and vibration resistance guarantee durability, while low electromotive force minimizes signal interference. Easy to install in sockets, this relay is perfect for engineers and technicians seeking efficiency and reliability in control systems and power management setups. Buy online now for quick delivery and excellent performance.
Get Panasonic S2L2DC24V today—built for precision and long-lasting durability in industrial automation and power switching.
Frequently Asked Questions
Where can I buy Panasonic S2L2DC24V?
You can click on the BUY or RFQ button to purchase S2L2DC24V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part S2L2DC24V?
You can download the S2L2DC24V datasheet or visit the Panasonic website for support.
Who is the manufacturer of S2L2DC24V?
Panasonic
