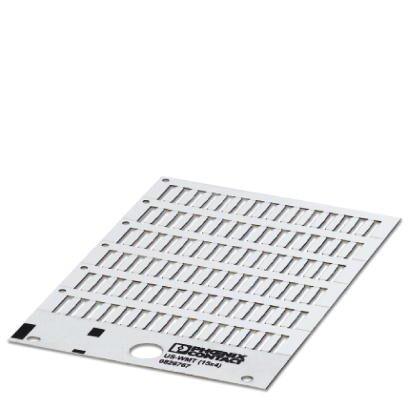

Phoenix Contact 0828767 Cable Marker Card
The Phoenix Contact US-WMT (15x4) cable marker card is a versatile solution for identifying and organizing cables in industrial environments. Part of the UniSheet labeling range, these markers are designed for use with PATG/PATO marking collars and can be custom-labeled using THERMOMARK CARD devices. The card format allows for efficient labeling of multiple cables, streamlining the identification process. The markers are resistant to various environmental conditions, including temperature extremes, chemicals, and UV exposure, ensuring long-lasting legibility. They are suitable for a wide range of applications, from control cabinets to machinery, contributing to improved maintenance and operational efficiency.
Phoenix Contact 0828767 Cable Marker Card Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 12.0 g
- Custom tariff number: 39204910
- Country of origin: Germany
- Length (b): 15 mm
- Width (a): 4.3 mm
- Cable diameter: 0.6 mm ... 50 mm
- Ambient temperature (operation): -30 °C ... 80 °C
- Recommended storage conditions: 10-30 °C / 40-70 % relative humidity
- Color: white
- Components: Silicone-free
- Flammability rating according to UL 94: V0
- Material: PVC
- Wipe resistance: DIN EN 61010-1 (VDE 0411-1)
- Number of individual labels: 84
- Number of individual labels per row: 14
- Printability: Thermal transfer
- Device: 5146464 THERMOMARK CARD
- Ink ribbon: 5146451 THERMOMARK CARD-US-MAG1
- Test for substances that would hinder coating with paint or varnish: VW PV 3.10.7:2005-02
- Test specification weathering-resistance: Following ISO 4892-2:2013-03
- Test duration: 96 h
- Salt spray test specification: DIN EN 60068-2-11:2000-02
- Salt spray testing result: Test passed
- Alternating condensation climate with SO2 test specification: Following DIN 50018:2013-05
- Climate level: AHT 1.0 S
- Cycles: 2
- Wipe resistance of test specification inscriptions: DIN EN 61010-1 (VDE 0411-1):2011-07
- Marking mounting type: Thread on
- eCl@ss 4.0: 24190218
- eCl@ss 4.1: 24190218
- eCl@ss 5.0: 27141137
- eCl@ss 5.1: 27141137
- eCl@ss 6.0: 27400401
- eCl@ss 7.0: 27400401
- eCl@ss 8.0: 27400401
- ETIM 2.0: EC000761
- ETIM 3.0: EC000761
- ETIM 4.0: EC001530
- ETIM 5.0: EC001530
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
