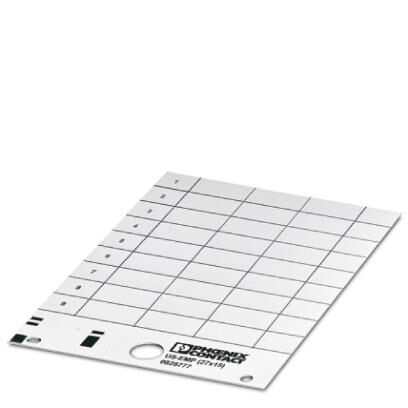

Phoenix Contact 0828777 Snap-in Markers US-EMP
PHOENIX CONTACT US-EMP snap-in markers are a versatile labeling solution for industrial applications. Designed to fit into CARRIER EMP label frames, these markers enable efficient and cost-effective labeling using THERMOMARK CARD. The perforated design simplifies separation and installation, while the sheets provide ample space for detailed function texts. They are ideal for identifying wires, cables, and equipment in various industrial settings, ensuring clear and organized labeling for improved maintenance and operational efficiency. The markers are silicone-free and meet various industry standards for durability and performance.
Phoenix Contact 0828777 Snap-in Markers US-EMP Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 15.36 g
- Custom tariff number: 39204910
- Country of origin: Germany
- Length (b): 26.9 mm
- Width (a): 14.9 mm
- Height: 0.5 mm
- Ambient temperature (operation): -30 °C ... 80 °C
- Recommended storage conditions: 10-25 °C / 35-65 % relative humidity
- Color: white
- Components: Silicone-free
- Flammability rating according to UL 94: V0
- Material: PVC
- Wipe resistance: DIN EN 61010-1 (VDE 0411-1)
- Number of individual labels: 27
- Number of individual labels per row: 3
- Printability: Thermal transfer
- Device: 5146464 THERMOMARK CARD, 5146451 THERMOMARK CARD-US-MAG1
- Ink ribbon: 0801371 THERMOMARK-RIBBON 110-TC
- Test for substances: VW PV 3.10.7:2005-02
- Test specification weathering-resistance: Following ISO 4892-2:2013-03
- Test duration: 96 h
- Wipe resistance test result: Test passed
- Salt spray test specification: DIN EN 60068-2-11:2000-02
- Salt spray testing result: Test passed
- Alternating condensation climate: Following DIN 50018:2013-05
- Climate level: AHT 1.0 S
- Condensation test result: Test passed
- Wipe resistance of test specification inscriptions: IEC 61010-1:2010-06
- Foil strength: 500 µm
- Marking mounting type: snapped into marker carrier
- eCl@ss 4.0: 24190219
- eCl@ss 4.1: 24190219
- eCl@ss 5.0: 27141137
- eCl@ss 5.1: 27141137
- eCl@ss 6.0: 27141137
- eCl@ss 7.0: 27141137
- eCl@ss 8.0: 27149129
- ETIM 2.0: EC000761
- ETIM 3.0: EC000761
- ETIM 4.0: EC000761
- ETIM 5.0: EC001288
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
