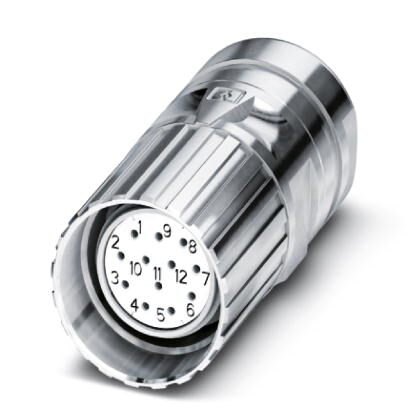

Phoenix Contact CA17S1N1280DN 17-Position M23 Cable Connector
The PHOENIX CONTACT CA-17S1N1280DN is a high-quality, 17-position M23 cable connector engineered for demanding industrial applications. Its robust construction includes a copper zinc alloy housing and a zinc die-cast housing, providing excellent durability and protection. The connector’s shielded design ensures consistent EMC protection for reliable signal transmission, while the screw locking mechanism and IP67 degree of protection safeguard against environmental factors. It's ideal for flexible on-site assembly and applications requiring secure, high-performance connections, such as industrial automation, power transmission, and data communication systems. The connector supports a wide range of litz wire sizes and offers a nominal current of 8A at 25°C.
Phoenix Contact CA17S1N1280DN 17-Position M23 Cable Connector Specifications:
- Packing Unit: 1 STK
- GTIN: 4046356821612
- Weight per Piece: 98.800 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 125 °C
- Coding: N
- Insulator material: PBT
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact connection method: Solder connection
- Type of contacts: Socket
- Number of positions: 17
- Contact diameter of power contacts: 1 mm
- Litz wire cross section of power contacts min.: 0.08 mm²
- Litz wire cross section of power contacts max.: 1 mm²
- Nominal current per power contact at 25°C: 8 A
- Nominal voltage, power contact: 150 V
- Rated surge voltage: 1.5 kV
- Overvoltage category: II
- Degree of pollution: 3
- Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
- Type of locking: Screw locking
- Degree of protection (when plugged in): IP67
- Thread type: M23
- Min. cable diameter: 3 mm
- Max. cable diameter: 14.5 mm
- Sealing material: NBR
- China RoHS: Environmentally Friendly Use Period = 50
