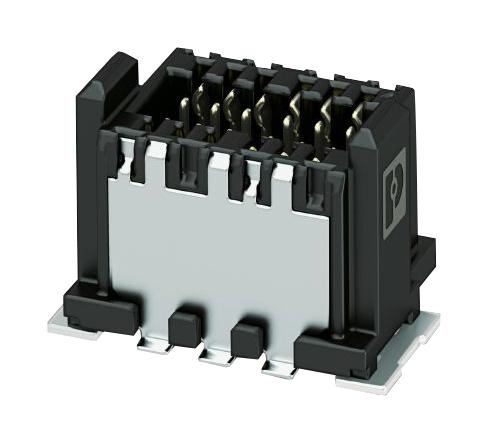

Phoenix Contact 1043790 SMD Male Connector Shielded
The Phoenix Contact FP 0,8/ 80-MV-SH 1,15 is a shielded SMD male connector designed for high-density applications. It boasts 80 positions with a 0.8mm pitch, ensuring efficient space utilization. Gold-plated contacts guarantee stable signal transfer over time, while the ScaleX contact system provides robust mechanical and electrical connections with high tolerance compensation. This connector is ideal for applications requiring reliable SMD soldering and is suitable for flexible device designs with varying numbers of positions and stack heights. It is RoHS compliant and free of whiskers, ensuring long-term reliability and adherence to industry standards.
Phoenix Contact 1043790 SMD Male Connector Shielded Specifications:
- Nominal current at 20 °C: 1.7 A
- Test voltage: 500 V AC
- Number of positions: 80
- Pitch: 0.8 mm
- Color: black
- Contact surface: Gold
- Mounting: SMD soldering
- Packing unit: 500 pc
- Minimum order quantity: 500 pc
- GTIN: 4055626616902
- Weight per Piece (excluding packing): 2.570 g
- Custom tariff number: 85366990
- Plug-in system: FINEPITCH 0,8 mm shielded
- Type of contact: Male connector
- Electrical characteristic: shielded
- Range of articles: FP 0,8/...-MV-SH 1,15
- Number of levels: 2
- Number of potentials: 80
- Contact resistance: ≤20 mΩ
- Insulation resistance: ≥ 5 GΩ
- Contact material: Cu alloy
- Surface characteristics: Selective coating
- Metal surface contact area (top layer): Gold (Au)
- Metal surface contact area (middle layer): Nickel (Ni)
- Metal surface soldering area (top layer): Tin (Sn)
- Metal surface soldering area (middle layer): Nickel (Ni)
- Insulating material: LCP
- Insulating material group: IIIa
- CTI according to IEC 60112: 150
- Flammability rating according to UL 94: V0
- Length [ l ]: 6.1 mm
- Width [ w ]: 35.9 mm
- Height [ h ]: 6.25 mm
- Height (without solder pin): 5.65 mm
- Coplanarity: ≤ 0.1 mm
- Contact cover: 0.8 mm
- Overlap length: 1.5 mm
- Medium offset: ± 0.7 mm
- Angular tolerance: ± 2 °
- Stack height: 6 mm
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Ambient temperature (assembly): -5 °C ... 100 °C
- Ambient temperature (operation): -55 °C ... 125 °C
- Insertion and withdrawal force per contact: ≤ 1.2 N
- Air clearances and creepage distances: min. 0.25 mm
- Service life: 500 Insertion/withdrawal cycles
