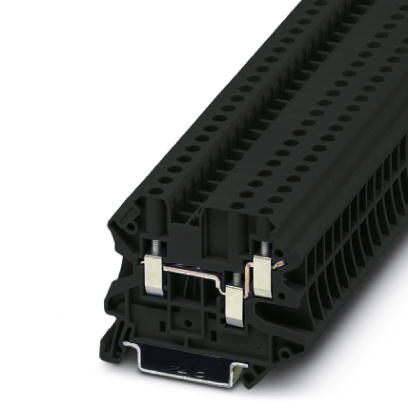

Phoenix Contact 1079167 Feed-through terminal block
The PHOENIX CONTACT UT 4-TWIN BK feed-through terminal block provides a robust and efficient solution for connecting multiple conductors in industrial environments. Its consistent double function shaft allows for time-saving potential distribution and easy access for test accessories. Tested for railway applications, this terminal block offers a secure and reliable connection with a nominal voltage of 500V and a nominal current of 32A. It is ideal for machine building, plant engineering, and process industries where dependable power distribution is essential.
Phoenix Contact 1079167 Feed-through terminal block Specifications:
- Number of levels: 1
- Number of connections: 3
- Potentials: 1
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.02 W
- Maximum load current: 41 A
- Nominal current IN: 32 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Ambient temperature (operation): -60 °C ... 85 °C
- Ambient temperature (storage/transport): -25 °C ... 55 °C
- Moisture, minimum (storage/transport): 30 %
- Moisture, maximum (storage/transport): 70 %
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 57.8 mm
- Height: 46.9 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Connection: 1 level
- Connection method: Screw connection
- Screw thread: M3
- Stripping length: 9 mm
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 6 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum: 0.5 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum: 1 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum: 0.14 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum: 1.5 mm²
- Internal cylindrical gage: A4
