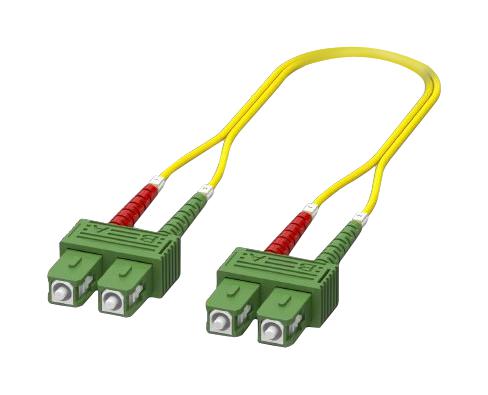

Phoenix Contact 1115545 Fiber Optic Patch Cable
This single-mode OS2 duplex patch cable features SC connectors with APC polishing for optimal signal transmission, measuring 0.5 meters in length. Made of halogen-free, flame-retardant LSZH material, it is suitable for indoor fiber optic distribution and termination devices. The cable complies with IEC standards IEC 61300-3-4 and IEC 61300-3-6, offering reliable performance with 500 insertion/withdrawal cycles. Its yellow, 8-shaped fiberglass structure with a 2.00 mm diameter ensures durability, low flammability (UL 94V-0), and environmental compliance, making it ideal for professional data and communication networks.
Phoenix Contact 1115545 Fiber Optic Patch Cable Specifications:
- Cable Length: 0.50 meters
- Cable Type: Single-mode fiberglass
- Cable Structure: Figure 8 cable
- External Sheath Color: Yellow
- External Sheath Material: LSZH (Low Smoke Zero Halogen)
- External Diameter: 2.00 mm
- Cable Weight: 5.30 kg/km
- Flammability Rating: UL 94V-0
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Resistance to Oil: Not resistant
- Resistance to Fumes: According to IEC 61034
- Halogen-Free: Yes, per IEC 60754-2
- Temperature Range (Storage/Transport): -20°C to +60°C
- Number of Insertion/Withdrawal Cycles: 500
- Certifications: IEC standards compliant, UL listed
Buy the Buy Phoenix Contact Fiber Optic Patch Cable Part Number 1115545 Online
Purchase the Phoenix Contact Fiber Optic Patch Cable, 0.5 meters, SC connectors, yellow LSZH sheath, ideal for indoor fiber optic installations. Reliable, compliant with industry standards, halogen-free, flame retardant, and resistant to high temperatures, this cable ensures optimal signal quality in data communication networks. Suitable for distribution and termination devices, it offers durability through 500 insertion cycles and is environmentally friendly with a 50-year usage period. Order online now for quick, secure delivery and professional-grade performance.
Get Phoenix Contact fiber optic patch cable 1115545 today—designed for high-performance and long-lasting durability in indoor fiber networks.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115545?
You can click on the BUY or RFQ button to purchase 1115545 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115545?
You can download the 1115545 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115545?
Phoenix Contact
