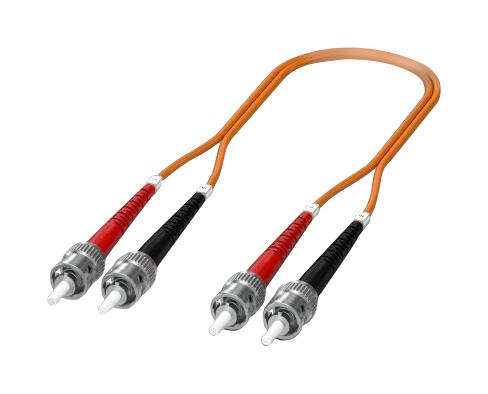

Phoenix Contact 1115554 Fiber Optic Patch Cable
This multi-mode OM2 duplex fiber optic patch cable is 5 meters long, designed for indoor fiber optic distribution and termination. It features an ST-ST connector with UPC polishing, constructed from halogen-free flame-retardant material compliant with RoHS standards. The cable has an external diameter of 2.00 mm, a weight of 5.30 kg/km, and meets IEC 61300-3-4 and IEC 61300-3-6 standards. It withstands ambient temperatures from -20°C to 60°C, supports over 500 insertion cycles, and has a UL 94VO flammability rating. It is environmentally friendly with a 50-year use period.
Phoenix Contact 1115554 Fiber Optic Patch Cable Specifications:
- Cable Length: 5.00 m
- Cable Structure: Figure 8 cable
- External Sheath Color: Orange
- External Sheath Material: LSZH
- External Diameter: 2.00 mm
- Cable Weight: 5.30 kg/km
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Flammability Rating: UL 94VO
- Material: Halogen-free flame-retardant
- Ambient Temperature: -20°C to 60°C
- Insertion/Withdrawal Cycles: 500
- Resistance to Oil: Not resistant
- Fume Concentration: IEC 61034 compliant
- Resistance to Oil and Chemicals: Not resistant
- Environmental Period: 50 years
- RoHS Compliance: Yes
- Fire Behavior: No toxic fumes
- Connector Type: Duplex ST with UPC polishing
- Fiber Type: Multimode OM2
- Category: Manufacturing parts, optical fiber components, fiber optic cables
Buy the Buy Phoenix Contact Fiber Optic Patch Cable Part Number 1115554 Online
Order the Phoenix Contact fiber optic patch cable 1115554 online for reliable indoor fiber distribution. With a length of 5 meters and ST-ST connectors, it ensures high performance, flame resistance, and environmental safety. Made from halogen-free materials, it complies with IEC standards and features a UL 94VO flammability rating. This durable cable withstands temperatures from -20°C to 60°C, supports over 500 insertion cycles, and is ideal for telecommunications, data centers, and network installations. Purchase online for quick delivery and guaranteed quality.
Get Phoenix Contact fiber optic patch cable 1115554 today—built for indoor fiber distribution, durability, and long-lasting performance.
