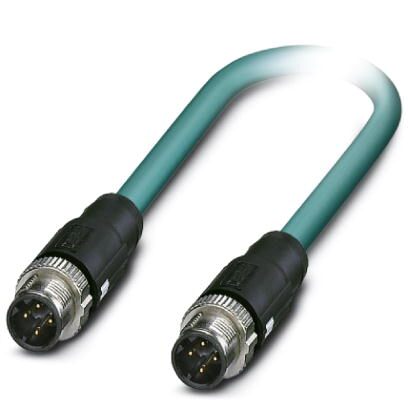

Phoenix Contact 1407378 Network Cable M12
This PHOENIX CONTACT network cable provides a robust and reliable connection for industrial Ethernet applications. The M12 SPEEDCON connectors ensure a secure and IP67-rated connection, making it suitable for harsh environments. The PUR cable offers excellent resistance to oil, abrasion, and chemicals, while the shielded design minimizes interference. It's commonly used in automation, robotics, and other industrial settings where reliable data communication is critical.
Phoenix Contact 1407378 Network Cable M12 Specifications:
- Packing unit: 1 pc
- GTIN: 4046356775069
- Weight per Piece (excluding packing): 260.000 g
- Custom tariff number: 85444290
- Country of origin: Poland
- Length of cable: 5 m
- Degree of protection: IP65, IP67
- Ambient temperature (operation): -25 °C ... 85 °C
- Rated current at 40°C: 4 A
- Rated voltage AC: 48 V
- Rated voltage DC: 60 V
- Number of positions: 4
- Signal type/category: Ethernet CAT5 (100 Mbps)
- Standards/regulations: M12 connector IEC 61076-2-101
- Contact material: CuSn
- Contact carrier material: TPU GF
- Contact surface material: Ni/Au
- Head type: Plug straight M12 SPEEDCON / IP67
- No. of positions (pin connector pattern): 4
- Coding: D (Data)
- Insulation resistance: ≥ 100 MΩ
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm
- Ambient temperature (operation) - head: -25 °C ... 90 °C
- Cable type: PUR ETHERNET 2x2 FLEX
- Cable type (abbreviation): 93E
- UL AWM style: 20963 (80°C/30 V)
- Cable structure: 2x2xAWG26/7; SF/UTP
- Conductor cross section: 2x 2x 0.14 mm²
- AWG signal line: 26
- Conductor structure signal line: 7x 0.16 mm
- Core diameter including insulation: 0.98 mm
- Wire colors: white/orange-orange, white/green-green
- Overall twist: Two pairs with two fillers to the core
- Shielding: Aluminum-coated foil, tinned copper braided shield
- Optical shield covering: 70 %
- External sheath, color: water blue RAL 5021
- Outer sheath thickness: 1.2 mm
- External cable diameter D: 6.4 mm ±0.2 mm
- Minimum bending radius, fixed installation: 4 x D
- Minimum bending radius, flexible installation: 8 x D
- Tensile strength GRP: ≤ 80 N
- Cable weight: 42 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: Foamed PE
- Conductor material: Bare Cu litz wires
- Standards/specifications: Electrical requirements EN 50288-2-2
- Insulation resistance (cable): ≥ 500 MΩ*km
- Loop resistance: ≤ 290.00 Ω/km
- Cable capacity: approx. 45 nF/km
- Wave impedance: 100 Ω ±5 Ω
- Near end crosstalk attenuation (NEXT): 65.3 dB (with 1 MHz)
- Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz)
- Attenuation: 3.2 dB (with 1 MHz)
- Return loss (RL): 23 dB (at 4 МHz)
- Signal runtime: 5.3 ns/m
- Coupling resistance: ≤ 100.00 mΩ/m
- Nominal voltage, cable: ≤ 100 V
- Test voltage Core/Core: 700 V
- Test voltage Core/Shield: 700 V
- Current carrying capacity of cable: 2 A
- Flame resistance: IEC 60332-1-2, UL VW1
- Halogen-free: IEC 60754-1
- Resistance to oil: EN 60811-2-1
- Ambient temperature (operation) - cable: -40 °C ... 80 °C
- Ambient temperature (installation): -20 °C ... 80 °C
- Ambient temperature (storage/transport): -20 °C ... 80 °C
- China RoHS: Environmentally Friendly Use Period = 50
