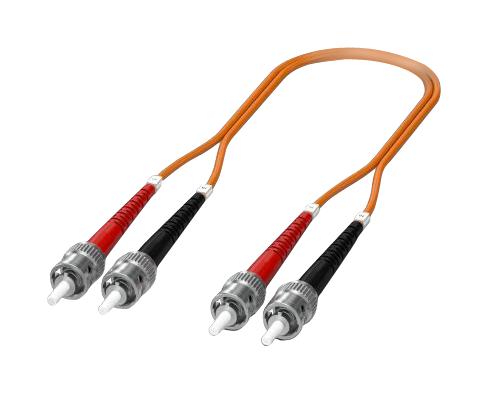

Phoenix Contact 1115561 Fiber Optic Patch Cable
This multi-mode OM2 duplex fiber optic patch cable features ST-ST connectors with UPVC polishing, 0.5 meters in length, and an orange LSZH external sheath. Designed for indoor fiber optic distribution and termination, it complies with IEC 61300-3-4 and IEC 61300-3-6 standards, supports over 500 insertion cycles, and withstands temperatures from -20°C to 60°C. Made of halogen-free, flame-retardant materials, it offers reliable connectivity with minimal emissions and is RoHS compliant. The fiber cable has an outer diameter of 2.00 mm, weighs 5.30 kg/km, and is resistant to heat and mechanical stress.
Phoenix Contact 1115561 Fiber Optic Patch Cable Specifications:
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Orange
- External diameter: 2.00 mm
- Cable length: 0.5 m
- Weight: 5.30 kg/km
- Material: LSZH
- Flammability rating: UL 94VO
- Operational temperature: -20°C to 60°C
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Resistance to oil: Not resistant
- Fume concentration: In accordance with IEC 61034
- Environmental compliance: China RoHS, 50-year use period
- Connector type: Duplex ST-ST, UPC polishing
- Heavy-duty design for indoor fiber optic applications
Buy the Buy Phoenix Contact Fiber Optic Cable Part Number 1115561 Online
Order the Phoenix Contact fiber optic patch cable 1115561 online for superior indoor fiber optic connectivity. This duplex multimode OM2 cable features ST-ST connectors with UPC polishing, an orange LSZH outer sheath, and a length of 0.5 meters. It is flame-retardant, halogen-free, and compliant with IEC standards, supporting over 500 insertion cycles. The robust design ensures reliable performance in fiber distribution and termination applications, resistant to high temperatures and mechanical stresses for long-lasting durability.
Get Phoenix Contact fiber optic patch cable 1115561 today—designed for reliable, high-performance indoor fiber distribution with flame-retardant, halogen-free materials.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115561?
You can click on the BUY or RFQ button to purchase 1115561 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115561?
You can download the 1115561 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115561?
Phoenix Contact
