Phoenix Contact 1115584 fiber optic patch cable

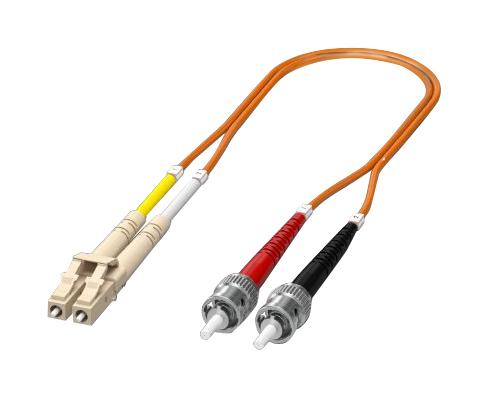

The fiber optic patch cable is a multi-mode OM2 duplex jumper with LC to ST connectors, 5 meters in length. Constructed from halogen-free flame-retardant LSZH material, it is suitable for indoor fiber optic distribution and termination. Compliant with IEC 61300-3-4 and IEC 61300-3-6 standards, it withstands 500 insertion/withdrawal cycles. The cable features an orange external sheath, with a diameter of 2.00 mm, weighing 5.30 kg/km, and rated Flammability UL 94 VO. It offers high performance for reliable industrial fiber optic networking.
Phoenix Contact 1115584 fiber optic patch cable Specifications:
- Length: 5.00m
- Cable type: Multimode fiberglass
- External sheath: LSZH, orange
- External diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Flammability rating: UL 94 VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Number of insertion/withdrawal cycles: 500
- Ambient temperature: -20°C to +60°C
- Resistance to oil: Not resistant
- Concentration of fumes: IEC 61034
- Halogen-free: Yes, IEC 60754-2
- Behavior in fire: No corrosive or toxic fumes
- Environmentally friendly use period: 50 years
Buy the Phoenix Contact FOC-LC:PA-ST:PA-OM2:D01/5 U+2013 Reliable Fiber Optic Patch Cable for Industrial Applications
Order the reliable fiber optic patch cable today and enhance your indoor fiber optic connections with this high-quality OM2 duplex jumper. Designed with a durable LSZH orange sheath, it ensures safety and flame resistance in industrial environments. Suitable for distribution and termination devices, with 500 insertion cycles and IEC compliance, this cable delivers long-lasting performance. Perfect for networking needs requiring high durability, UL-rated flames, and environmental safety lasting 50 years. Buy now for optimal fiber optic connectivity with trusted quality.
Get Phoenix Contact FOC-LC:PA-ST:PA-OM2:D01/5 today—built for indoor fiber optic networking with flame-retardant LSZH sheath and high cycle durability.
