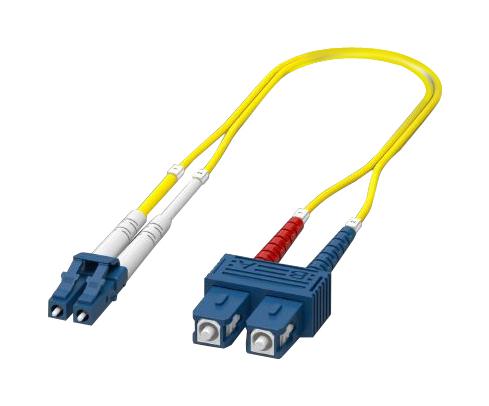

Phoenix Contact 1115620 Fiber Optic Patch Cable
This is a single-mode OS2 duplex fiber optic patch cable with LC-to-SC connectors, 0.5 meters in length, suitable for indoor fiber optic distribution and termination. Made of halogen-free, flame-retardant material, it provides over 500 insertion/withdrawal cycles and is compliant with RoHS and IEC standards. The cable features UL 94 V-0 flammability rating, LSZH outer sheath, external diameter of 2.00 mm, and is designed for reliable, high-performance fiber optic communication with resistance to environmental factors within a temperature range of -20°C to 60°C.
Phoenix Contact 1115620 Fiber Optic Patch Cable Specifications:
- Cable type: Single-mode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Yellow
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Outer sheath material: LSZH
- Flammability rating: UL 94 V-0
- Ambient temperature: -20°C to +60°C
- Insertion/withdrawal cycles: > 500
- Material: Halogen-free, flame-retardant
- Resistance to oil: Not resistant
- Concentration of fumes: IEC 61034
- Standards: IEC 60754-2, IEC 61034
- Environmental compliance: RoHS, China RoHS, 50-year use period
Buy the Buy Phoenix Contact FO Patch Cable Part Number 1115620 Online
Enhance your fiber optic network with this high-quality single-mode duplex patch cable. Measuring 0.5 meters, it features LC to SC connectors, ideal for indoor fiber distribution and termination. Made from environmentally friendly, halogen-free flame-retardant LSZH material, it ensures safety and durability. With over 500 insertion cycles, UL 94 V-0 flammability rating, and compliance with RoHS standards, this cable guarantees reliable performance in demanding settings. Easy to install and suitable for high-speed data transfer without environmental degradation.
Get Phoenix Contact FO Patch Cable 1115620 today—built for reliable indoor fiber optic communication with halogen-free flame-retardant construction.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115620?
You can click on the BUY or RFQ button to purchase 1115620 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115620?
You can download the 1115620 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115620?
Phoenix Contact
