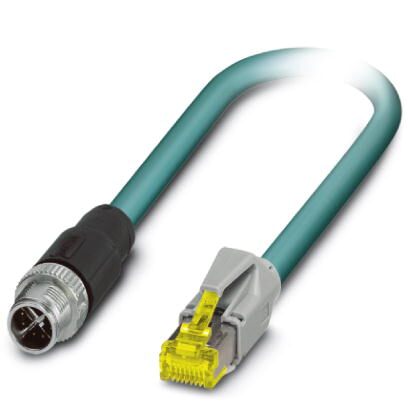

Phoenix Contact 1407472 Network Cable CAT6A

Phoenix Contact 1407472 Network Cable CAT6A Specifications:

• Packing unit: 1 pc
• GTIN: 4046356776691
• Weight per Piece (excluding packing): 120.000 g
• Custom tariff number: 85444290
• Country of origin: Poland
• Length of cable: 2 m
• Degree of protection: IP65 (M12 connector), IP67 (M12 connector), IP20 (RJ45 connector)
• Ambient temperature (operation) M12: -25 °C ... 90 °C
• Ambient temperature (operation) RJ45: -20 °C ... 70 °C
• Rated current at 40°C: 0.5 A
• Rated voltage: 48 V AC, 60 V DC
• Number of positions: 8
• Signal type/category: Ethernet CAT6A, 10 Gbps, CC-Link IE CAT6A, 10 Gbps
• Standards/regulations: M12 connector IEC 61076-2-109
• Contact material: CuSn
• Contact carrier material: PP
• Contact surface material: Ni/Au
• Housing material: Plastic
• Head type M12: Plug straight M12 SPEEDCON / IP67
• No. of positions (pin connector pattern) M12: 8
• Coding M12: X (Data)
• Color M12: black
• Material (component) M12: CuZn (Contact), Ni/Au (Contact surface), PP (Contact carriers), TPU (Grip), Zinc die-cast, nickel-plated (Screw connection)
• Insulation resistance: ≥ 100 MΩ
• Insertion/withdrawal cycles: ≥ 100
• Torque: 0.4 Nm
• Head type RJ45: Plug straight RJ45 / IP20
• No. of positions (pin connector pattern) RJ45: 8
• Color RJ45: gray, gray / black
• Insertion/withdrawal cycles RJ45: ≥ 750
• Cable type: Ethernet 10 Gbit
• Cable type (abbreviation): 94F
• UL AWM style: 20963 (80°C/30 V)
• Cable structure: 4x2xAWG26/7; S/FTP
• Conductor cross section: 4x 2x 0.14 mm²
• AWG signal line: 26
• Conductor structure signal line: 7x 0.16 mm
• Core diameter including insulation: 1.04 mm
• Wire colors: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
• Twisted pairs: 2 cores to the pair
• Type of pair shielding: Aluminum-lined foil
• Overall twist: 4 pairs for core
• Shielding: Tinned copper braided shield
• Optical shield covering: 70 %
• External sheath, color: water blue RAL 5021
• Outer sheath thickness: 0.65 mm
• External cable diameter D: 6.4 mm ±0.2 mm
• Minimum bending radius, fixed installation: 4 x D
• Minimum bending radius, flexible installation: 8 x D
• Tensile strength GRP: ≤ 100 N
• Cable weight: 42 kg/km
• Outer sheath, material: PUR
• Material conductor insulation: Foamed PE
• Conductor material: Bare Cu litz wires
• Insulation resistance cable: ≥ 500 MΩ*km
• Loop resistance: ≤ 290.00 Ω/km
• Cable capacity: 47 nF/km
• Wave impedance: 100 Ω ±5 Ω (at 100 MHz)
• Near end crosstalk attenuation (NEXT) 1 MHz: 75.3 dB
• Near end crosstalk attenuation (NEXT) 4 MHz: 66.3 dB
• Near end crosstalk attenuation (NEXT) 8 MHz: 61.8 dB
• Near end crosstalk attenuation (NEXT) 10 MHz: 60.3 dB
• Power-summated near end crosstalk attenuation (PSNEXT) 1 MHz: 72.3 dB
• PSNEXT 4 MHz: 63.3 dB
• Attenuation 1 MHz: 3.1 dB
• Attenuation 4 MHz: 5.7 dB
• Return loss (RL) 1 MHz: 20 dB
• Signal runtime: 5.13 ns/m
• Shield attenuation: ≥ 80 dB (at 30 ... 100 MHz)
• Nominal voltage, cable: ≤ 100 V
• Test voltage Core/Core: 700 V (50 Hz, 1 min.)
• Test voltage Core/Shield: 700 V (50 Hz, 1 min.)
• Flame resistance: according to IEC 60332-1-2
• Halogen-free: according to IEC 60754-1
• Resistance to oil: in accordance with DIN EN 60811-2-1
• Ambient temperature (operation) cable fixed: -40 °C ... 80 °C
• Ambient temperature (operation) cable flexible: -20 °C ... 80 °C
• Ambient temperature (installation): -20 °C ... 80 °C
• Ambient temperature (storage/transport): -20 °C ... 80 °C
