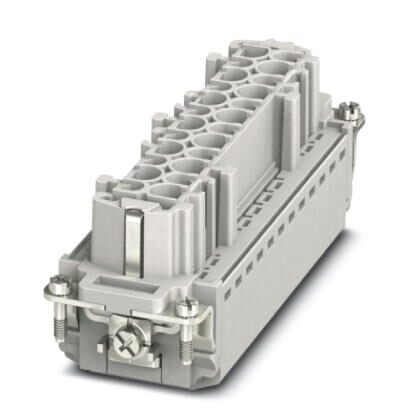

Phoenix Contact 1407735 Power Contact Insert
This heavy-duty 24+PE contact insert is designed for power applications, featuring a B24 size and push-in connection technology. It supports a rated voltage of 500 V and a current capacity of 16 A, ideal for industrial electrical systems. Compatible with solid and stranded wires up to 2.5 mm², it offers quick and tool-free conductor connection, saving time during assembly. The contact insert is UL and CSA recognized, with excellent fire protection characteristics, making it suitable for rail vehicles and demanding environments. Precise dimensions and robust materials ensure reliable operation in various ambient conditions.
Phoenix Contact 1407735 Power Contact Insert Specifications:
- Rated Voltage: 500 V
- Current Rating: 16 A
- Number of Positions: 24 + PE
- Connection Type: Push-in
- Wire Size: 0.14 mm² to 2.5 mm² (AWG 26-14)
- Material: Flammability UL 94 V-0
- Ambient Temperature Range: -40°C to 125°C
- Approvals: UL Recognized, CSA Certified, EAC, GL
- Dimensions: Compatible with B24 series socket, detailed dimensions in datasheet
- Fire Protection: Meets DIN EN 45545-2 R22, R23, R24 standards
- Application: Power installations, industrial automation, rail vehicle wiring
Buy the Phoenix Contact 1407735 – Reliable Power Contact for Industrial Applications
Purchase the Phoenix Contact 1407735 series power contact insert online today and enjoy fast, tool-free conductor connection. Designed for industrial and rail applications, this 24+PE contact supports up to 500 V and 16 A, providing durability and safety. Its push-in connection simplifies wiring, saving time during installation. Recognized by UL and CSA, it meets stringent fire and safety standards, making it ideal for demanding environments. Secure your reliable power connectivity solution now and enhance your project’s efficiency and safety.
Order your Phoenix Contact 1407735 series power contact insert today and ensure reliable, quick, and tool-free wiring for demanding industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 1407735?
You can click on the BUY or RFQ button to purchase 1407735 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1407735?
You can download the 1407735 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1407735?
Phoenix Contact
