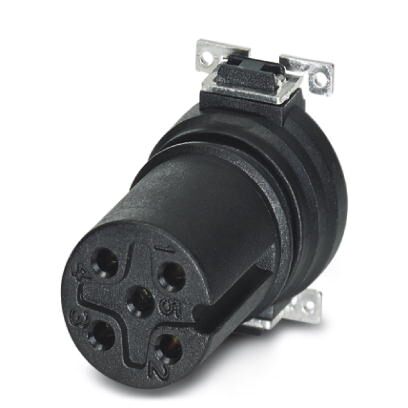

Phoenix Contact 1411976 Flush-type M12 Connector
The PHOENIX CONTACT SACC-CI-M12FS-5P SMD R32 is a flush-type connector ideal for applications requiring compact and reliable M12 connectivity. Its SMD design simplifies PCB integration, while the mechanical port screw connections facilitate easy device integration. The connector supports various pin assignments and codings, ensuring compatibility with diverse systems. It is suitable for industrial automation, power transmission, and sensor networks where robust and space-saving connectivity is essential.
Phoenix Contact 1411976 Flush-type M12 Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4046356991674
- Weight per Piece (excluding packing): 6.200 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -55 °C ... 105 °C (Plug / socket)
- Degree of protection: IP67 (correctly plugged in and locked)
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Rated surge voltage: 1.5 kV
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: IEC 61076-2-101
- Overvoltage category: III
- Degree of pollution: 3
- Connection method: SMD
- Insertion/withdrawal cycles: > 100
- Mounting type: PCB mounting
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- China RoHS: Environmentally Friendly Use Period = 50
- Standards and Regulations: M12 connector
- Standard designation: M12 connector
Buy the 1411976 PHOENIX CONTACT Flush-type M12 Connector | myMectronic
Purchase the PHOENIX CONTACT 1411976 SACC-CI-M12FS-5P SMD R32 connector securely and reliably online.
