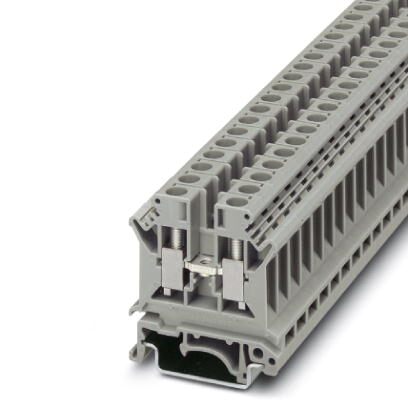

Phoenix Contact 3004524 Industrial Terminal Block
This is a Phoenix Contact feed-through terminal block designed for industrial wiring applications. It features six connection poles, a current rating of 50A, and a voltage rating of 600V. The terminal supports wire sizes from #26 to #8 AWG and utilizes a screw connection for secure installation. The body color is gray.
Phoenix Contact 3004524 Industrial Terminal Block Specifications:
- Rated voltage: 600 V
- Rated current: 50 A
- Number of poles: 6
- Connection method: Screw connection
- Wire range: 26-8 AWG
- Wire cross section: 0.2 mm² - 10 mm²
- Conductor flexibility: min 0.2 mm, max 6 mm
- Material: PA
- Color: Gray
- Dimensions: Width 8.2 mm, Length 42.5 mm, Height NS 35/7.5 47 mm, Height NS 35/15 54.5 mm, Height NS 32 52 mm
- Flammability rating: UL 94V-0
- Standards: IEC 60947-7-1, UL Recognized, cUL Recognized
- Compliance: Fire protection R22, R23, R24, R26 HL1-HL3
- Environmental: Insulation temperature index 130°C, Cold withstand -60°C
Buy the Phoenix Contact Series UK 6 N: 3004524
Purchase the Phoenix Contact feed-through terminal block online today to benefit from high quality, secure screw connection, broad wire size support, and compliance with industry standards. Designed for industrial applications, this terminal block offers excellent durability, easy installation, and compatibility with various DIN rails, ensuring your wiring projects are safe, organized, and efficient. Shop now for quick delivery and premium performance for your control and automation needs.
Order your Phoenix Contact Series UK 6 N 3004524 today and ensure reliable, secure wiring for your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3004524?
You can click on the BUY or RFQ button to purchase 3004524 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3004524?
You can download the 3004524 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3004524?
Phoenix Contact
