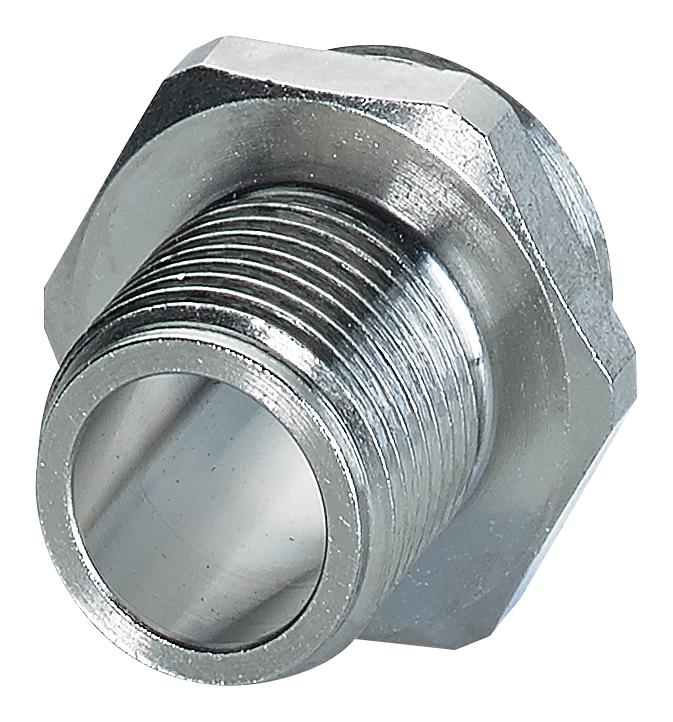

Phoenix Contact 1412078 Housing screw connector
The SACC-FP-M-M12/M14 SMD housing screw connection is designed for reliable front mounting and offers IP67 protection when properly connected and locked. Made of nickel-plated brass and featuring FKM sealing material, this connector supports over 100 insertion and withdrawal cycles, ensuring durability and easy maintenance. Suitable for industrial environments, it operates across -25°C to 85°C and withstands mechanical and environmental stresses, making it ideal for efficient PCB assembly and device integration in automation and control systems.
Phoenix Contact 1412078 Housing screw connector Specifications:
- Ambient temperature (operation): -25 °C ... 85 °C
- Ambient temperature (without mechanical actuation): -40 °C ... 85 °C
- Degree of protection: IP67
- Material: Nickel-plated brass, FKM sealing material
- Insertion/withdrawal cycles: > 100
- Torque: 2 Nm ... 3 Nm
- Mounting type: Front mounting M14 x 1
- Standards: IEC 61076-2-101
- Certification: EAC
- Max dimensions: 10.2 mm length, 2.8 mm width (as per dimension drawing)
Buy the Buy Phoenix Contact Housing Screw Connection Part Number 1412078 Online
Secure your automation and industrial control systems with the Phoenix Contact housing screw connection. Easy to install, durable, and compliant with IEC standards, this connector ensures IP67 protection for reliable performance across harsh environments. With a nickel-plated brass body and FKM sealing, it provides over 100 insertion cycles and a torque range of 2 to 3 Nm for secure fastening. Ideal for PCB assembly, it offers quick front mounting and robust mechanical and environmental protection, essential for professional industrial applications.
Order your Phoenix Contact SACC-FP-M-M12/M14 SMD housing screw connection today and ensure reliable and efficient device integration in your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 1412078?
You can click on the BUY or RFQ button to purchase 1412078 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1412078?
You can download the 1412078 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1412078?
Phoenix Contact
