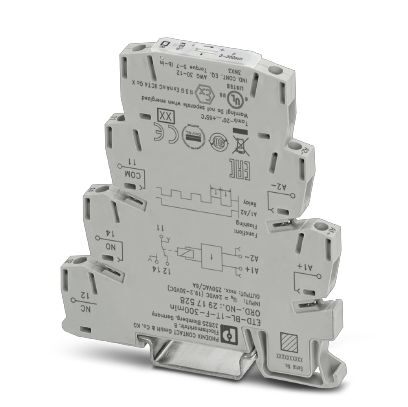

Phoenix Contact ETDBL1TF300MIN Timer Relay
The PHOENIX CONTACT ETD-BL-1T-F-300MIN is a compact timer relay suitable for controlling time sequences in various industrial applications. Its narrow 6.2 mm design width makes it ideal for space-constrained environments. The labeled and illuminated thumbwheel allows for precise time setting, protected from accidental modification by a recessed design. It offers a time setting range from 3 minutes to 300 minutes and includes a flasher function. The relay is designed for reliable operation and ease of use, making it a valuable component in automation and control systems.
Phoenix Contact ETDBL1TF300MIN Timer Relay Specifications:
- Packing unit: 1 pc
- Weight per Piece: 60.0 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: F: Flashing beginning with pulse
- Time setting range: 3 min. ... 300 min.
- Contact type: 1 floating PDT
- Interrupting rating (ohmic load) max.: 1125 VA (4.5 A/250 V AC, module mounted in rows, spacing ≤ 5 mm)
- Output fuse: 6.3 A (fast-blow)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL, USA / Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Noise emission: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
