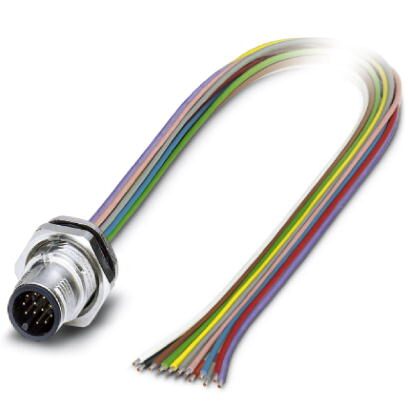

Phoenix Contact 1430459 M12 Flush-Type Connector
The Phoenix Contact SACC-DSI-MS-12CON-PG9/0,5 SCO is a robust M12 flush-type connector designed for demanding industrial applications. It features a pre-assembled, 0.5-meter TPE litz wire, ensuring immediate usability. The connector's sealed design provides optimum leak-tightness, while the SPEEDCON fast locking system reduces cabling time. Its versatility accommodates various signal, data, and power transmission needs with a uniform design. The optional EMC nut enhances transmission safety, making it suitable for environments requiring noise immunity. This connector is ideal for sensor and actuator connections in automated machinery, industrial control systems, and other applications requiring reliable and efficient data transfer.
Phoenix Contact 1430459 M12 Flush-Type Connector Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 28.6 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Length of cable: 0.5 m
- Ambient temperature (operation) - Plug / socket: -25 °C ... 85 °C
- Ambient temperature (operation) - without mechanical actuation: -40 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 1.5 A
- Rated voltage: 30 V
- Rated surge voltage: 0.8 kV
- Number of positions: 12
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Individual wires
- Insertion/withdrawal cycles: > 100
- Torque: 3 Nm ... 4 Nm (Installation-side)
- Mounting type: Rear mounting Pg9 With flat nut
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 66
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: FKM
- Cable type: TPE litz wire
- Conductor cross section: 0.14 mm²
- AWG signal line: 26
- Conductor structure signal line: 7x 0.16 mm
- Core diameter including insulation: 1.1 mm ±0.05 mm
- Thickness, insulation: 0.21 mm
- Wire colors: Brown, blue, white, green, pink, yellow, black, gray, red, violet, gray/pink, red/blue
- Material conductor insulation: TPE
- Conductor material: Tin-plated Cu litz wires
- Insulation resistance (cable): ≥ 20 MΩ*km
- Conductor resistance: ≤ 57.6 mΩ/m
- Nominal voltage, cable: 300 V
- Test voltage, cable: 2000 V AC
- Ambient temperature (operation) - cable, fixed installation: -40 °C ... 85 °C
- Ambient temperature (operation) - cable, flexible installation: -25 °C ... 85 °C
