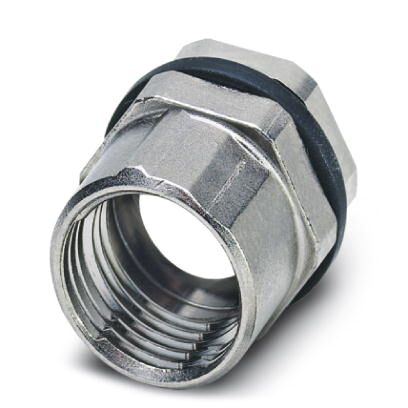

Phoenix Contact 1432460 M12 Screw Connection Housing
The Phoenix Contact SACC-M12-SCO NUT L 90 (part number 1432460) is a robust M12 screw connection housing designed for reliable data transmission in industrial environments. It offers easy device integration through mechanical port screw connections and supports flexible PCB assembly with two-piece connectors suitable for wave and THR soldering. The SPEEDCON fast locking system significantly reduces cabling time, enhancing efficiency in manufacturing and automation processes. This housing is ideal for applications requiring secure and efficient M12 connections, such as industrial networking, sensor integration, and power transmission.
Phoenix Contact 1432460 M12 Screw Connection Housing Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 8.0 g
- Custom tariff number: 79070000
- Country of origin: Germany
- Ambient temperature (operation) - Plug / socket: -25 °C ... 85 °C
- Ambient temperature (operation) - without mechanical actuation: -40 °C ... 85 °C
- Degree of protection: IP67
- Standards/regulations: IEC 61076-2-101
- Torque: 1.5 Nm ... 2 Nm
- Mounting type: M12 x 1
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact carrier material: PA 66
- Material of grip body: Zinc die-cast, nickel-plated
- Material, knurls: Zinc die-cast, nickel-plated
- Material: Zinc die-cast (nickel-plated)
- Sealing material (Internal O-ring): EPDM
- Sealing material (Flat gasket): HNBR
- Ambient temperature (operation) - cable, fixed installation: -40 °C ... 85 °C
- Ambient temperature (operation) - cable, flexible installation: -25 °C ... 85 °C
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27143423
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 7.0: 27449001
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440102
- ETIM 3.0: EC002350
- ETIM 4.0: EC002350
- ETIM 5.0: EC002061
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
