Phoenix Contact FP0832FVSH785 FINEPITCH Connectors
The FINEPITCH series offers high-density, reliable board-to-board connectors with 0.8 mm and 1.27 mm pitches, featuring shielded and unshielded options. Designed for signal and data transmission in compact devices, these connectors support high-speed data rates up to 16 Gbps, excellent electromagnetic compatibility, and flexible device design through various stack heights and connection configurations. With process-reliable soldering, excellent durability, and impedance-matched options, the FINEPITCH series is ideal for automated assembly in industrial and electronic applications, delivering robust, vibration-resistant, and space-efficient PCB connections.
Phoenix Contact FP0832FVSH785 FINEPITCH Connectors Specifications:
- Pitch: 0.8 mm or 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C (per contact, varies with number of positions)
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearances and creepage distances: Min. 0.25 mm for 0.8 mm pitch, 0.4 mm for 1.27 mm pitch
- Temperature limits during operation: -55°C to +125°C
- Service life: 500 insertion cycles
- EMC properties: Shielded versions offer excellent electromagnetic compatibility
- Data transmission: Up to 16 Gbps, supports high-frequency signals
- Material: Copper alloy, Ni/Au contact surface, LCP insulation
- Approvals: UL 1977
- Processing: Compatible with automated SMT soldering, tape-on-reel packaging

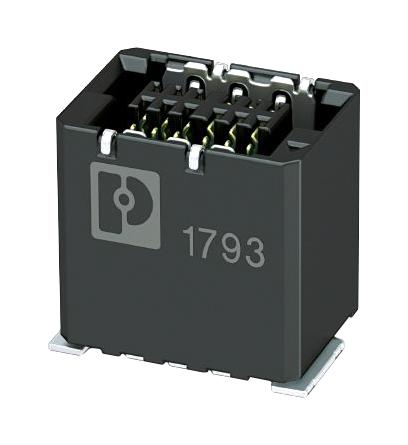

Buy the Phoenix Series FINEPITCH 0.8 mm and 1.27 mm Connectors: FP0832FVSH785
Upgrade your electronic and industrial projects with high-density, reliable FINEPITCH connectors from Phoenix Contact. Designed for space-saving PCB connections, these connectors support data transfer speeds up to 16 Gbps and offer excellent electromagnetic compatibility, ensuring interference-free operation. With robust, vibration-resistant design and automated soldering compatibility, they are perfect for manufacturing automation, high-speed data systems, and compact device integration. Purchase online today to benefit from fast delivery, quality assurance, and seamless integration into your designs.
Order your Phoenix Series FINEPITCH 0.8 mm and 1.27 mm connectors FP0832FVSH785 today and enhance your device's high-speed data transmission and signal integrity.
