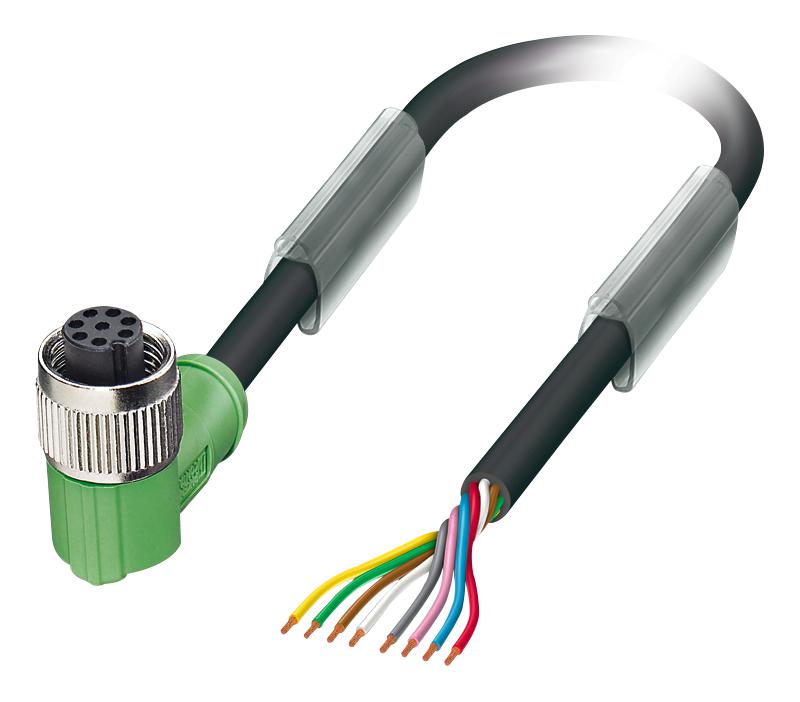

Phoenix Contact 1522626 Sensor actuator cable
This is a 8-position sensor/actuator cable designed for industrial automation, featuring a halogen-free PUR sheath, black-gray RAL 7021 color, and an angled M12 socket. The cable is 1.5 meters long, suitable for demanding environments with an operation temperature of -25°C to 90°C. It offers IP65/IP67/IP68 protection, rated for 2A current and 30V voltage, with reliable CuZn contacts, gold-plated surfaces, and flexible, flame-resistant, UV, and oil-resistant properties. The cable meets IEC 61076-2-101 standards, making it ideal for robust sensor and actuator connections.
Phoenix Contact 1522626 Sensor actuator cable Specifications:
- Number of positions: 8
- Cable length: 1.5 m
- Sheath material: PUR halogen-free, black-gray RAL 7021
- Outer sheath thickness: approx. 0.8 mm
- Outer diameter D: 5.9 mm +0.15 mm
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Operating temperature: -25°C to 90°C
- Degree of protection: IP65/IP67/IP68
- Conductor cross section: 8x 0.25 mm²
- Cable structure: 8 wires, with 32x 0.10 mm signal structure
- Flammability rating: UL 94 HB
- Resistance: > 100 MQ insulation, < 78 Ω/km conductor resistance
- Standards: IEC 61076-2-101, UL Listed, cUL Listed, EAC
- Environmental resistance: oil, acids, alkalis, UV, microbe resistance
- Conductor material: Bare Cu litz wires
- Protection class: Pollution degree 3
Buy the Phoenix Contact SAC-8P- 1,5-PUR/M12FR – Reliable Sensor/Actuator Cable for Industrial Applications
Order the Phoenix Contact SAC-8P- 1,5-PUR/M12FR sensor actuator cable online now to ensure secure, durable connections in demanding industrial environments. This 8-position, halogen-free PUR cable offers excellent flexibility, flame resistance, and environmental durability, making it ideal for sensors and actuators operating at temperatures from -25°C to 90°C. With IP65/IP67/IP68 protection, rated for 2A and 30V, this cable guarantees reliable performance, easy installation, and long-lasting service in automation systems. Purchase today for optimal connectivity solutions.
Buy Phoenix Contact SAC-8P- 1,5-PUR/M12FR now and experience unmatched reliability and performance for industrial sensor and actuator connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 1522626?
You can click on the BUY or RFQ button to purchase 1522626 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1522626?
You can download the 1522626 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1522626?
Phoenix Contact
