Phoenix Contact 1522639 Sensor Cable

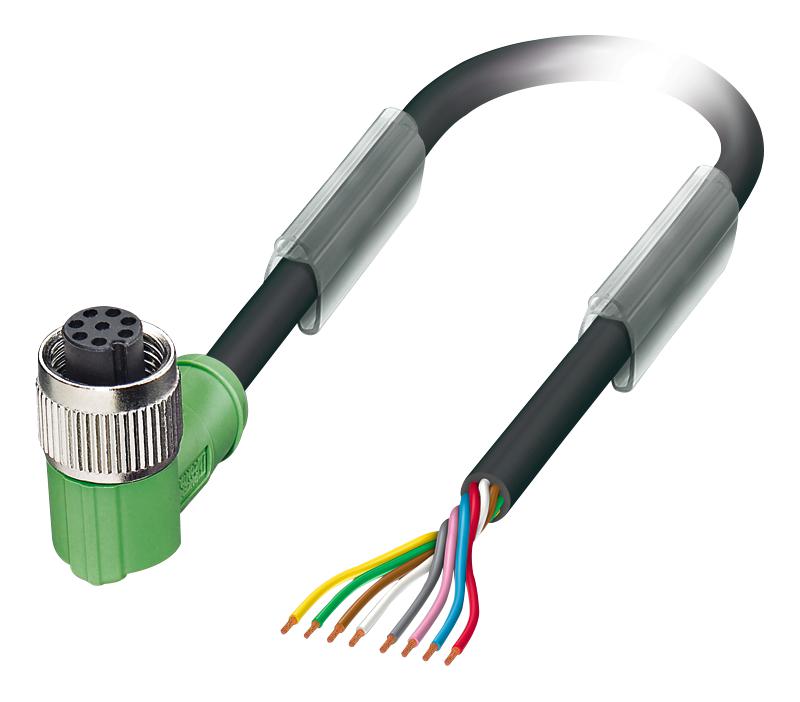

This sensor/actuator cable features an 8-position, halogen-free PUR black-gray sheath with a length of 3 meters, suitable for industrial automation. It is designed with an angled M12 connector, A-coded, rated for operation between -25°C and 90°C, and offers IP65/IP67/IP68 protection. The cable supports a rated current of 2A and voltage of 30V, making it ideal for reliable sensor and actuator connections in harsh environments. It conforms to IEC 61076-2-101 standards, ensuring high-quality and safety compliance for industrial applications.
Phoenix Contact 1522639 Sensor Cable Specifications:
- Number of positions: 8
- Cable length: 3m
- Sheath material: PUR halogen-free, black-gray RAL 7021
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Degree of protection: IP65/IP67/IP68
- Temperature range: -25°C to 90°C
- Insulation resistance: > 100 MQ
- Contact material: CuZn with Ni/Au surface
- Standards: IEC 61076-2-101
- Conductor cross section: 8x 0.25 mm²
- UL style: 20549 / 10493 (80°C/300 V)
- Conductor material: Bare Cu litz wires
- Flammability rating: UL 94 HB
- Bending cycles: 4,000,000
- External diameter: ~5.9 mm
- Minimum bending radius (fixed): 8xD
- Test voltage: 3000 V
Buy the Buy Phoenix Contact SAC-8P- 3,0-PUR/M12FR Part Number 1522639 Online
Purchase the Phoenix Contact SAC-8P- 3,0-PUR/M12FR sensor and actuator cable online today. This 3-meter, halogen-free, PUR-encased cable ensures high durability and safety in industrial applications. With an 8-position, A-coded M12 connector, it supports up to 2A current and 30V, designed for harsh environments with IP65/IP67/IP68 ratings. Its flexible, flame-resistant, and oil-resistant properties make it ideal for automation systems requiring reliable, corrosion-resistant connections. Order now for quick delivery and enhanced system performance.
Get Phoenix Contact SAC-8P- 3,0-PUR/M12FR today—built for precision, durability, and reliable sensor-actuator connections in industrial environments.
