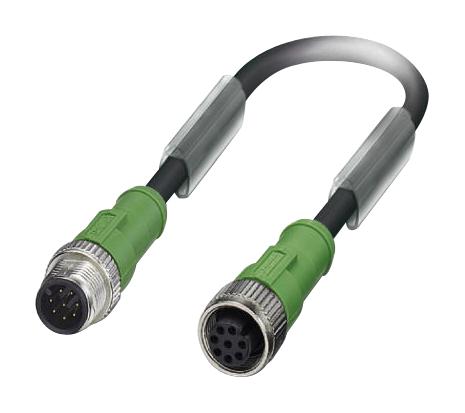

Phoenix Contact 1522684 Sensor/Actuator Cable
This is a 8-position, halogen-free PUR sensor/actuator cable with M12 connectors, measuring 0.6 meters in length. It features a black-gray external sheath (RAL 7021), IP65/IP67/IP68 protection ratings, and a flexible, flame-resistant, silicone-free design. Its copper contacts with Ni/Au surfaces ensure reliable connections, and it is suitable for industrial automation environments. The cable is highly resistant to oil, acids, solvents, UV, and hydrolysis, making it ideal for challenging conditions while supporting over 4 million bending cycles for long-lasting durability.
Phoenix Contact 1522684 Sensor/Actuator Cable Specifications:
- Length of cable 0.6m
- Ambient temperature: -25°C to 90°C
- Degree of protection: IP65, IP67, IP68
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Insulation resistance: > 100 MQ
- Conductor cross section: 8x 0.25 mm²
- Conductor resistance: < 78 Q/km
- External sheath thickness: approx. 0.8 mm
- Outer sheath material: PUR halogen-free black
- Bending radius fixed: 59mm, flexible: 90mm
- Cable weight: 46 kg/km
- Approval: UL Listed, cUL Listed, EAC
- Compliance with IEC 61076-2-101 standards
Buy the Phoenix Contact Series SAC: Sensor/Actuator Cable: 1522684
Purchase the Phoenix Contact Sensor/Actuator Cable for reliable industrial automation connections. This 8-pin, halogen-free PUR cable measures 0.6 meters, offering excellent flexibility, flame resistance, and resistance to oils, acids, and UV exposure. It features IP65/IP67/IP68 ratings, ensuring durability in challenging environments. Designed with high-quality copper contacts Ni/Au plated and a robust sheath, it supports over 4 million bending cycles. Order online today to ensure long-lasting, secure, and efficient sensor and actuator connections in your automation system.
Buy Phoenix Contact 1522684 now and experience unmatched reliability and performance with robust, high-quality industrial sensor cables.
