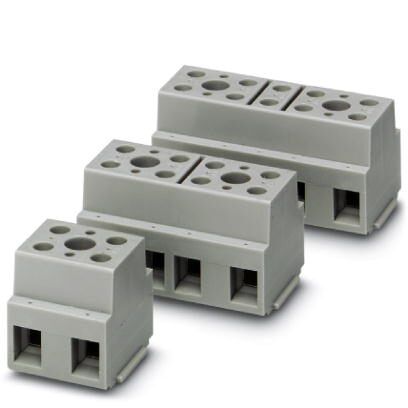

Phoenix Contact 3013094 Device Terminal Block

Phoenix Contact 3013094 Device Terminal Block Specifications:

• Number of positions: 3
• Number of levels: 1
• Number of connections: 6
• Potentials: 3
• Nominal cross section: 10 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V2
• Rated surge voltage: 8 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 1.82 W
• Maximum load current: 76 A (with 16 mm² conductor cross section)
• Nominal current IN: 57 A
• Nominal voltage UN: 800 V
• Open side panel: No
• Ambient temperature (operation): -60 °C ... 85 °C
• Ambient temperature (storage/transport): -25 °C ... 55 °C (For a short time, not exceeding 24 h, -60 to +70 °C)
• Permissible humidity (storage/transport): 30 % ... 70 %
• Ambient temperature (assembly): -5 °C ... 70 °C
• Ambient temperature (actuation): -5 °C ... 70 °C
• Width: 46 mm
• Length: 33 mm
• Height: 31 mm
• Connection method: Screw connection
• Screw thread: M4
• Stripping length: 10.6 mm
• Tightening torque, min: 1.5 Nm
• Tightening torque max: 1.8 Nm
• Connection in acc. with standard: IEC 60947-7-1/IEC 60998
• Conductor cross section solid min.: 0.5 mm²
• Conductor cross section solid max.: 16 mm²
• Conductor cross section AWG min.: 20
• Conductor cross section AWG max.: 6
• Conductor cross section flexible min.: 0.5 mm²
• Conductor cross section flexible max.: 10 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.5 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 16 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 16 mm²
• 2 conductors with same cross section, solid min.: 0.5 mm²
• 2 conductors with same cross section, solid max.: 6 mm²
• 2 conductors with same cross section, stranded min.: 0.5 mm²
• 2 conductors with same cross section, stranded max.: 6 mm²
• Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum: 0.5 mm²
• Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum: 6 mm²
• Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum: 0.5 mm²
• Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum: 6 mm²
• Internal cylindrical gage: A3
• REACh SVHC: Lead 7439-92-1
• China RoHS: Environmentally Friendly Use Period = 50 years
• eCl@ss 10.0.1: 27141120
• eCl@ss 4.0: 27141100
• eCl@ss 4.1: 27141100
• eCl@ss 5.0: 27141100
• eCl@ss 5.1: 27141100
• eCl@ss 6.0: 27141100
• eCl@ss 7.0: 27141120
• eCl@ss 8.0: 27141120
• eCl@ss 9.0: 27141120
• ETIM 2.0: EC001284
• ETIM 3.0: EC001284
• ETIM 4.0: EC001284
• ETIM 5.0: EC000897
• ETIM 6.0: EC000897
• ETIM 7.0: EC000897
• UNSPSC 6.01: 30211811
• UNSPSC 7.0901: 39121410
• UNSPSC 11: 39121410
• UNSPSC 12.01: 39121410
• UNSPSC 13.2: 39121410
• UNSPSC 18.0: 39121410
• UNSPSC 19.0: 39121410
• UNSPSC 20.0: 39121410
• UNSPSC 21.0: 39121410
