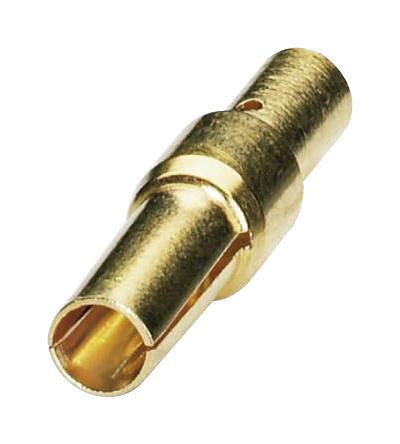

Phoenix Contact 1602998 Crimp Contact, Turned
The Phoenix Contact RC-1KS2000 crimp contact provides a reliable and robust connection for various applications. Its turned design and nickel-plated surface with gold coating ensure excellent conductivity and corrosion resistance. The crimp connection offers vibration resistance and temperature stability, making it ideal for demanding industrial environments. The contact is suitable for socket connections and accommodates litz wire cross sections ranging from 0.5 mm² to 1 mm². Easy production monitoring is also a key benefit.
Phoenix Contact 1602998 Crimp Contact, Turned Specifications:
- Contact type: turned
- Contact diameter: 1 mm
- Type of contact: Socket
- Connection method: Crimp connection
- Insertion/withdrawal cycles mechanical: 100
- Litz wire cross section min.: 0.5 mm²
- Litz wire cross section max.: 1 mm²
- Contact material: CuZn
- Contact surface: Nickel-plated (Ni), with gold coating (Au)
- Packing unit: 100 pc
- Minimum order quantity: 100 pc
- Custom tariff number: 85389099
- Country of origin: Germany
- Note: Made to Order (non-returnable)
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27261200
- eCl@ss 6.0: 27261200
- eCl@ss 7.0: 27440204
- eCl@ss 8.0: 27440204
- eCl@ss 9.0: 27440204
- ETIM 3.0: EC001121
- ETIM 4.0: EC000796
- ETIM 5.0: EC000796
- ETIM 6.0: EC000796
- ETIM 7.0: EC000796
- UNSPSC 6.01: 43172015
- UNSPSC 7.0901: 43201404
- UNSPSC 11: 43172015
- UNSPSC 12.01: 43201404
- UNSPSC 13.2: 39121522
- China RoHS: Environmentally Friendly Use Period = 50
