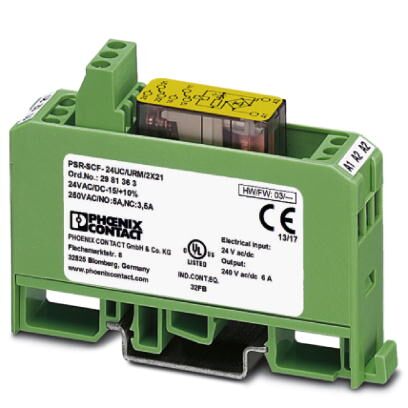

Phoenix Contact PSRSCF24UCURM2X21 Safety Relay Module
The PHOENIX CONTACT PSR-SCF- 24UC/URM/2X21 is a versatile safety relay module designed for a wide range of industrial applications requiring enhanced safety measures. It incorporates forcibly guided contacts, ensuring reliable safety functions according to EN 50205. This module provides single-channel control and operates on a nominal input voltage of 24 V AC/DC, with a typical response time of 10 ms. It features two PDT contacts, allowing for flexible configuration in safety circuits. The PSR-SCF- 24UC/URM/2X21 is suitable for applications in machinery, automation systems, and other industrial environments where safety is paramount. Its DIN rail mounting capability and robust design ensure easy integration and long-term reliability.
Phoenix Contact PSRSCF24UCURM2X21 Safety Relay Module Specifications:
- Packing unit: 10 STK
- GTIN: None
- Width: 17.5 mm
- Height: 75 mm
- Depth: 60.5 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Max. permissible relative humidity (operation): 75 % (on average, 85% infrequently, non-condensing)
- Max. permissible humidity (storage/transport): 75 % (on average, 85% infrequently, non-condensing)
- Maximum altitude: ≤ 2000 m (Above sea level)
- Nominal input voltage UN: 24 V AC/DC
- Input voltage range in reference to UN: 0.85 ... 1.1
- Typical input current at UN: 30 mA
- Typical response time: 10 ms
- Typical release time: 10 ms
- Contact type: 2 PDT
- Contact material: AgNi
- Minimum switching voltage: 15 V AC/DC
- Maximum switching voltage: 250 V AC/DC
- Limiting continuous current (N/O contact): 5 A
- Limiting continuous current (N/C contact): 3.5 A
- Inrush current, minimum: 10 mA
- Maximum inrush current: 6 A
- Interrupting rating (ohmic load) max. (24 V DC, τ = 0 ms): 144 W
- Interrupting rating (ohmic load) max. (48 V DC, τ = 0 ms): 288 W
- Interrupting rating (ohmic load) max. (110 V DC, τ = 0 ms): 88 W
- Interrupting rating (ohmic load) max. (220 V DC, τ = 0 ms): 110 W
- Interrupting rating (ohmic load) max. (250 V AC, τ = 0 ms): 1500 VA
- Maximum interrupting rating (inductive load): on request
- Switching capacity min.: 0.24 W
- Output fuse (N/O contact): 6 A gL/gG NEOZED
- Output fuse (N/C contact): 4 A gL/gG NEOZED
- Relay type: Electromechanical relay with forcibly guided contacts in accordance with EN 50205
- Mechanical service life: Approx. 10 7 cycles
- Net weight: 61.07 g
- Mounting type: DIN rail mounting
- Degree of protection: IP20
- Mounting position: any
- Connection method: Screw connection
- pluggable: no
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Stripping length: 7 mm
- Screw thread: M3
- Designation: Air clearances and creepage distances between the power circuits
- Standards/regulations: DIN EN 50178/VDE 0160, EN 50205
- Rated insulation voltage: 250 V
- Rated surge voltage/insulation: 4 kV / Basic isolation
- Degree of pollution: 2
- Overvoltage category: III
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371901
- eCl@ss 5.1: 27371901
- eCl@ss 6.0: 27371819
- eCl@ss 7.0: 27371819
- eCl@ss 8.0: 27371601
- ETIM 2.0: EC001449
- ETIM 3.0: EC001449
- ETIM 4.0: EC001449
- ETIM 5.0: EC001437
- UNSPSC 6.01: 30211901
- UNSPSC 7.0901: 39121501
- UNSPSC 11: 39121501
- UNSPSC 12.01: 39121501
- UNSPSC 13.2: 39121501
