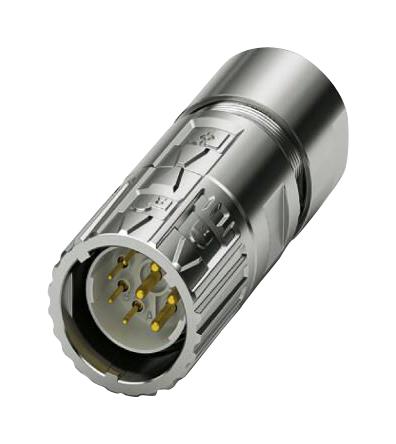

Phoenix Contact 1628847 Industrial Power and Signal Connector
The M23-7EP198A8LDLS cable connector is a high-performance, shielded, straight long connector designed for industrial power and signal applications. It features a reliable ONECLICK fast locking system, allowing for quick and secure connections even under harsh conditions, including vibrations. Suitable for a wide cable diameter range of 7.5 mm to 17 mm, it supports 8 contact points, including power and signal contacts with rated currents of 30A and 9A respectively. Constructed from durable PA6.6 insulation and GD-Zn housing, it offers IP66 protection, suitable for outdoor and demanding industrial environments. Designed to handle temperature ranges from -40°C to 125°C, the connector ensures robust and reliable electrical connectivity for industrial automation, power distribution, and machinery control systems.
Phoenix Contact 1628847 Industrial Power and Signal Connector Specifications:
- Dimensions: M23 thread size, overall length varies with configuration
- Housing material: GD-Zn, durable and corrosion-resistant
- Insulating body: PA6.6, flame retardant UL 94V-0
- Temperature range: -40°C to +125°C
- Protection class: IP66 when connected
- Number of contacts: 8, including power and signal contacts
- Power contact diameter: 2 mm, rated current per contact: 30A, voltage: 630V
- Signal contact diameter: 1 mm, rated current per contact: 9A, voltage: 250V
- Rated surge voltage: 6kV for power, 4kV for signals
- Cable diameter range: 7.5 mm to 17 mm with universal gasket
- Locking system: ONECLICK fast locking, vibration resistant
- Environmental compliance: China RoHS, environmentally friendly for 50 years
Buy the Phoenix Contact Series ED Cable Connector: M23-7EP198A8LDLS
Enhance your industrial automation setup with the Phoenix Contact Series ED M23 connector, featuring fast locking, IP66 protection, and reliable current ratings. Perfect for demanding environments requiring durable, secure, and easy-to-implement connections for power and signal transmission. Its universal cable diameter range of 7.5 to 17 mm makes it versatile and suitable for a variety of heavy-duty applications, including machinery, automation, and outdoor installations. Simplify your assembly process and ensure long-term operational reliability with this high-quality industrial connector.
Order your Phoenix Contact Series ED M23-7EP198A8LDLS connector today and give your industrial projects the dependable, vibration-resistant connectivity they need.
