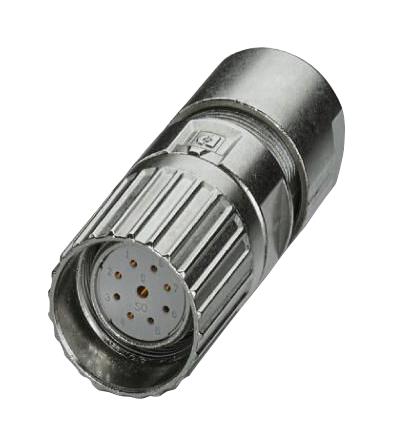

Phoenix Contact 1629220 Industrial Connector
The M23-09S1N8A80DU is a versatile, shielded straight cable connector designed for robust industrial applications. Featuring a secure screw locking system, it supports signal and power connections with 9 positions, including power contacts with a diameter of 2mm capable of 20A at 300V, and signal contacts with a diameter of 1mm supporting 8A at 300V. Constructed with durable materials like PA6.6 insulation and GD-Zn housing, it ensures IP66/IP67 protection. Suitable for environments with temperatures from -40°C to 125°C, it provides reliable performance in harsh conditions with safety compliance.
Phoenix Contact 1629220 Industrial Connector Specifications:
- Housing Material: GD-Zn
- Insulation Material: PA6.6
- Cable Diameter Range: 3 mm ... 15 mm (Universal gasket)
- Locking Type: Screw locking
- Protection Class: IP66/IP67
- Operating Temperature Range: -40°C to 125°C
- Number of Positions: 9
- Power Contact Diameter: 2 mm
- Power Contact Nominal Current: 20A at 25°C
- Power Contact Nominal Voltage: 300 V
- Signal Contact Diameter: 1 mm
- Signal Contact Nominal Current: 8A at 25°C
- Signal Contact Nominal Voltage: 300 V
- Rated Surge Voltage: 25 kV
- Degree of Pollution: 3
- Thread Type: M23
Buy the Phoenix Contact Series Industrial Connector: M23-09S1N8A80DU
Purchase the Phoenix Contact M23-09S1N8A80DU connector online today and benefit from premium quality, easy installation, and robust protection. Designed for demanding industrial applications, this connector features a secure screw locking mechanism, IP66/IP67 sealing, and supports both signal and power connections. Its temperature rating from -40°C to 125°C ensures reliable operation in extreme conditions. With a durable GD-Zn housing and PA6.6 insulation, it guarantees longevity and safety, making it the ideal choice for industrial automation, machinery, and control systems.
Buy Phoenix Contact M23-09S1N8A80DU now and experience unmatched reliability and performance in harsh industrial environments, ensuring secure power and signal connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 1629220?
You can click on the BUY or RFQ button to purchase 1629220 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1629220?
You can download the 1629220 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1629220?
Phoenix Contact
