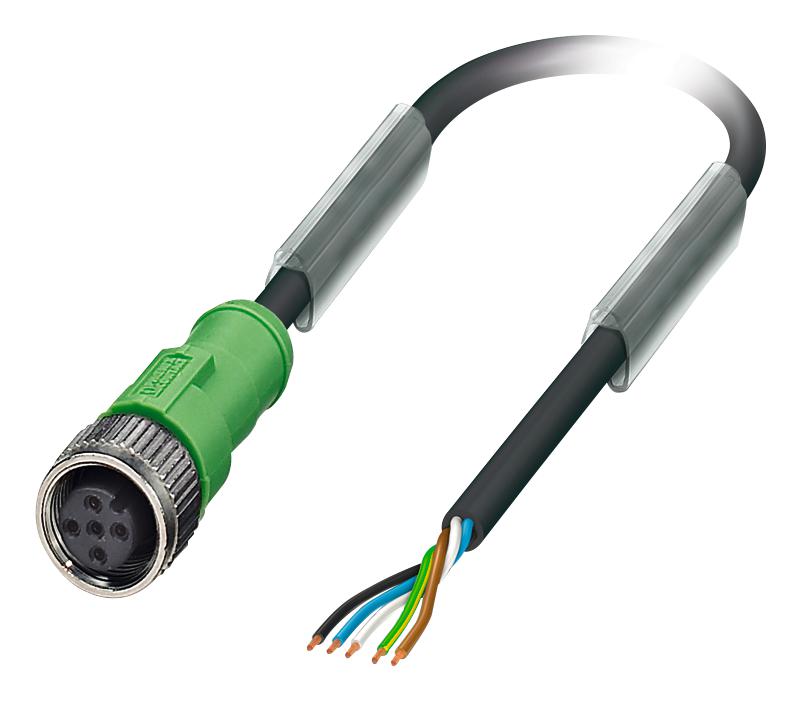

Phoenix Contact 1669822 Sensor Actuator Cable
This sensor/actuator cable features a 5-position, halogen-free PUR insulation and a robust black-gray RAL 7021 outer sheath. Designed for demanding industrial environments, it supports operation at temperatures from -25°C to 90°C, with a protection rating of IP65, IP67, and IP68. The cable has a length of 1.5 meters, with a conductor resistance of up to 58 Q/km and insulation resistance exceeding 100 MQ. It is UL Listed, cUL Listed, and EAC approved, capable of withstanding over 100 insertion cycles and rated for 4A at 60V.
Phoenix Contact 1669822 Sensor Actuator Cable Specifications:
- Number of positions: 5
- Cable length: 1.5m
- Outer sheath material: PUR halogen-free
- Outer sheath color: Black-gray RAL 7021
- Protection ratings: IP65, IP67, IP68
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Conductor cross section: 5 x 0.34 mm² (AWG 22)
- Conductor material: Bare Cu litz wires
- Insulation resistance: > 100 MQ
- Flexing cycles: 4,000,000
- Operating temperature: -25°C ... 90°C (plug/socket), -40°C ... 80°C (fixed installation)
- Resistance to oils, acids, alkaline solutions, solvents, UV, and microbe. Highly resistant to salt water and hydrolysis
- Standards: IEC 61076-2-101, UL Style 20549 / 10493, cUL Listed, EAC
- Approval: UL Listed, cUL Listed, EAC
- Bending radius: Fixed installation 25mm, flexible installation 50mm
- Bending cycles: > 1,000,000
Buy the Buy Phoenix Contact Sensor/Actuator Cable SAC-5P- 1,5-PUR/M12FS Online
Enhance your automation setup with this high-quality Phoenix Contact sensor/actuator cable. Featuring 5-pins, halogen-free PUR insulation, and a durable black-gray outer sheath, it supports operation at -25°C to 90°C with IP65/IP67/IP68 protection. The cable length is 1.5 meters, suitable for industrial environments requiring robust, flexible connection solutions. It’s UL, cUL, and EAC approved, rated for 4A at 60V, and resistant to oils, UV, acids, and saltwater. Easy to install and highly durable, it’s perfect for reliable sensor and actuator connections in demanding settings.
Get Phoenix Contact SAC-5P- 1,5-PUR/M12FS today—designed for reliable industrial automation and flexible wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact 1669822?
You can click on the BUY or RFQ button to purchase 1669822 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1669822?
You can download the 1669822 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1669822?
Phoenix Contact
