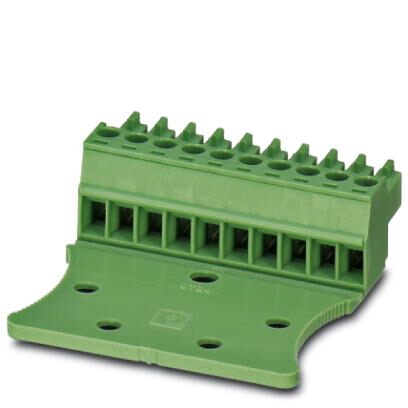

Phoenix Contact 1767694 MC 1.5/ 6-STZ2-3.81 Connector
The PHOENIX CONTACT MC 1,5/ 6-STZ2-3,81 PCB connector offers a well-known connection principle for worldwide use, ensuring compatibility and ease of integration. Its low temperature rise, thanks to maximum contact force, contributes to efficient heat dissipation. The connector allows for the connection of two conductors and includes a pull-out aid for simplified handling and reduced tensile force at the contact point. It is ideal for applications in industrial automation, control systems, and power distribution where reliable and secure PCB connections are essential.
Phoenix Contact 1767694 MC 1.5/ 6-STZ2-3.81 Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4046356436540
- Weight per Piece (excluding packing): 5.200 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Length [ l ]: 41 mm
- Width [ w ]: 23.65 mm
- Height [ h ]: 11.6 mm
- Pitch: 3.81 mm
- Dimension a: 19.05 mm
- Number of positions: 6
- Rated surge voltage (III/3): 2.5 kV
- Rated surge voltage (III/2): 2.5 kV
- Rated surge voltage (II/2): 2.5 kV
- Rated voltage (III/3): 160 V
- Rated voltage (III/2): 160 V
- Rated voltage (II/2): 320 V
- Connection method: Screw connection with tension sleeve
- Nominal current IN: 8 A
- Nominal cross section: 1.5 mm²
- Stripping length: 7 mm
- Screw thread: M2
- Tightening torque, min: 0.22 Nm
- Tightening torque max: 0.25 Nm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 0.5 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 16
- 2 conductors with same cross section, solid min.: 0.08 mm²
- 2 conductors with same cross section, solid max.: 0.5 mm²
- 2 conductors with same cross section, stranded min.: 0.08 mm²
- 2 conductors with same cross section, stranded max.: 0.75 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 0.34 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 0.5 mm²
- Minimum AWG according to UL/CUL: 30
- Maximum AWG according to UL/CUL: 14
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50
