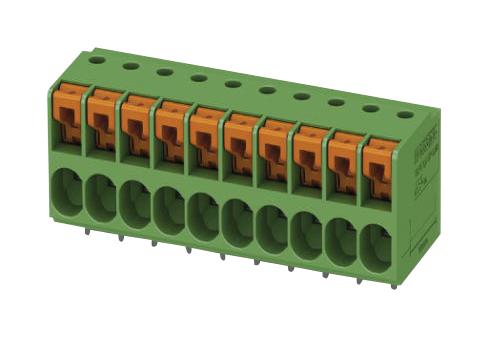

Phoenix Contact TDPT2510SP508 PCB terminal block
The PCB terminal block TDPT 2.5/10-SP-5.08 offers a reliable and compact connection solution for industrial electronics. It features a push-in spring connection and wave soldering mounting options, enabling fast and tool-free installation. The terminal supports a rated current of 32A, a voltage of 400V, and accommodates conductor cross-sections from 0.2 mm² to 4 mm², including flexible and stranded wires. Its green housing with precise dimensions ensures stable long-term contact, making it ideal for complex wiring in automation systems and control panels.
Phoenix Contact TDPT2510SP508 PCB terminal block Specifications:
- Rated current: 32A
- Rated voltage: 400V
- Pitch: 5.08 mm
- Number of positions: 10
- Connection method: Push-in spring
- Mounting: Wave soldering
- Housing color: Green
- Dimensions: Length 18 mm, Width 51.6 mm, Height 19 mm
- Pin dimensions: 0.8 x 0.8 mm
- Solder pin length: 3.5 mm
- Conductor cross section: 0.2 mm² to 4 mm², flexible and solid
- Strip length: 10 mm
- Material: Cu alloy, tin-plated
- Rated surge voltage: 4kV
- Insulation group: I
- Standards: IEC 60947-7-4, UL 94 V-0 flammability
- Ambient temperature (operation): -40°C to 105°C
Buy the Phoenix Contact Series TDPT PCB Terminal Block: TDPT2510SP508
Enhance your wiring efficiency with the Phoenix Contact PCB terminal block TDPT 2.5/10-SP-5.08. Designed for quick, tool-free push-in connections, it offers 10 positions, supporting conductor cross-sections from 0.2 mm² to 4 mm². This durable green housing supports a rated current of 32A at 400V, ensuring stable long-term contact in automation and control applications. Its compact dimensions facilitate easy installation in tight spaces, making it an essential component for reliable industrial wiring.
Get Phoenix Contact TDPT 2.5/10-SP-5.08 today—built for long-lasting durability and reliable electrical connections in industrial control panels.
Frequently Asked Questions
Where can I buy Phoenix Contact TDPT2510SP508?
You can click on the BUY or RFQ button to purchase TDPT2510SP508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part TDPT2510SP508?
You can download the TDPT2510SP508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of TDPT2510SP508?
Phoenix Contact
