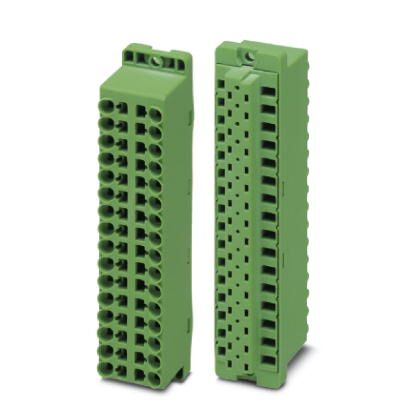

Phoenix Contact 2201632 Socket Strip 32 Positions
The PHOENIX CONTACT FRONT-ZFL 1,5/D32 socket strip is a versatile terminal block solution designed for a wide range of industrial applications. This 32-position strip offers a 5.08mm pitch and is constructed from durable PBT material with a V0 flammability rating. It supports conductor cross-sections from 0.2 mm² to 1.5 mm² (24-14 AWG) and is rated for a nominal current of 4A and a nominal voltage of 250V. Compliant with EN-VDE and cULus standards, this socket strip ensures reliable and safe connections in various electrical systems. Its environmentally friendly use period is unlimited, reflecting Phoenix Contact's commitment to sustainability.
Phoenix Contact 2201632 Socket Strip 32 Positions Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918902001
- Weight per Piece (excluding packing): 58.000 g
- Custom tariff number: 85366990
- Country of origin: China
- Length: 28.5 mm
- Height: 20.3 mm
- Width: 94.7 mm
- Pitch: 5.08 mm
- Dimension a: 5.08 mm
- Range of articles: FRONT-ZFL 1,5
- Insulating material group: I
- Rated surge voltage (II/2): 4 kV
- Connection in acc. with standard: EN-VDE
- Nominal current IN: 4 A
- Nominal voltage UN: 250 V
- Nominal cross section: 1.5 mm²
- Insulating material: PBT
- Flammability rating according to UL 94: V0
- Stripping length: 11 mm
- Number of positions: 32
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 14
- eCl@ss 4.0: 27260700
- eCl@ss 4.1: 27260700
- eCl@ss 5.0: 27260700
- eCl@ss 5.1: 27261100
- eCl@ss 6.0: 27261100
- eCl@ss 7.0: 27440401
- eCl@ss 8.0: 27440401
- eCl@ss 9.0: 27440401
- ETIM 3.0: EC001121
- ETIM 4.0: EC002498
- ETIM 5.0: EC002643
- ETIM 6.0: EC002643
- ETIM 7.0: EC002643
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121432
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Environmental Product Compliance: No hazardous substances above threshold values
