Phoenix Contact 2202551 UM-BASIC Development PCB

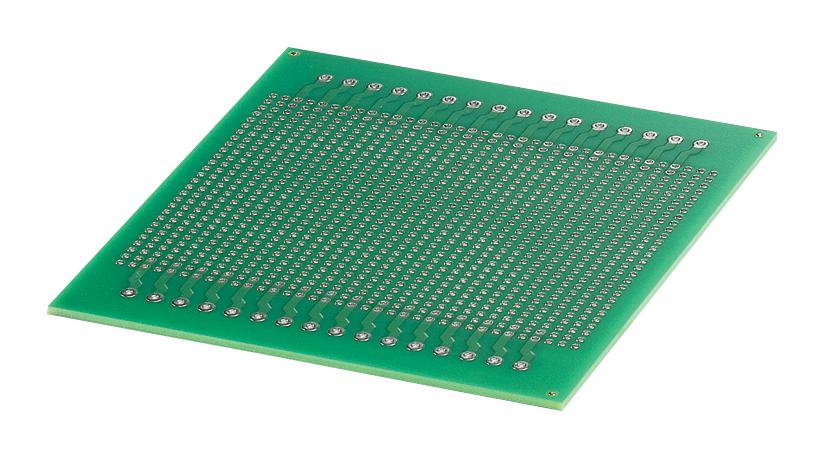

The PHOENIX CONTACT UM-BASIC 108/32 DEV-PCB (part number 2202551) is a perfboard specifically designed for use with the UM-BASIC 108 DEV-KIT. This board provides a convenient platform for manual soldering and is compatible with SMKDS terminal blocks, making it suitable for prototyping and custom circuit assembly. It features a hole matrix dimension of 2.54 mm, offering flexibility in component placement. The PCB is constructed from FR 4-21 material and has a flammability rating of V0 according to UL 94, ensuring safety and reliability in various applications. Its green color and compact size make it a versatile choice for electronics enthusiasts and professionals alike.
Phoenix Contact 2202551 UM-BASIC Development PCB Specifications:
- Packing unit: 1 STK
- GTIN: 4055626142661
- Weight per Piece (excluding packing): 38.040 g
- Custom tariff number: 85340011
- Country of origin: Germany
- Housing type: Component housing
- Housing material: FR 4-21
- Color: green
- Ambient temperature (operation): 110 °C
- Pitch: 2.54 mm
- Flammability rating according to UL 94: V0
- Environmentally friendly use period: unlimited
- eCl@ss 5.1: 27379201
- eCl@ss 8.0: 27182701
- eCl@ss 9.0: 27182701
- ETIM 4.0: EC002498
- ETIM 5.0: EC002779
- ETIM 6.0: EC002779
- UNSPSC 13.2: 31261501
- Assembly area: approx. 10,700 mm²
- Hole matrix dimension: 2.54 mm
