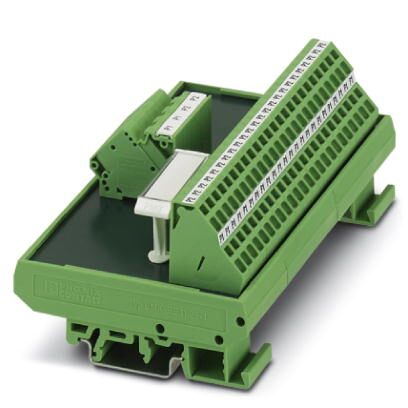

Phoenix Contact 2302382 Interface Module
The PHOENIX CONTACT UMK-PVB 2/48/ZFKDS interface module is a VARIOFACE component specifically engineered for potential distribution in industrial automation and control systems. It provides two equipotential busbars (P1, P2) and is designed for mounting on NS 35/7.5 or NS 32 rails. The module utilizes a spring-cage connection system, simplifying wiring and reducing installation time. It supports a broad range of conductor sizes, ensuring compatibility with diverse applications. With a nominal voltage of 250 V AC/DC and a total current capacity of 32 A per potential, this module offers reliable performance in demanding environments. It is ideal for applications requiring precise potential distribution and robust connectivity.
Phoenix Contact 2302382 Interface Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 236.3 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Width: 135 mm
- Height: 77 mm
- Depth: 52 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Nominal voltage UN: 250 V AC/DC
- Max. current carrying capacity per branch: 17 A
- Total current: 32 A (per potential)
- Mounting position: any
- Air clearances and creepage distances in a circuit: DIN EN 50178
- Rated surge voltage: 2.3 kV
- Rated insulation voltage: 260 V AC
- Degree of pollution: 2
- Overvoltage category: II
- Connection method: Spring-cage connection
- Stripping length: 8 mm
- Conductor cross section solid: 0.2 mm² ... 6 mm²
- Conductor cross section flexible: 0.2 mm² ... 4 mm²
- Conductor cross section AWG: 24 ... 10
- Number of connections (supply): 2
- Number of connections (distribution): 48
- Connection in acc. with standard: CUL
- Insulation: Basic insulation
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242608
- eCl@ss 7.0: 27141152
- eCl@ss 8.0: 27141152
- ETIM 2.0: EC001434
- ETIM 3.0: EC001604
- ETIM 4.0: EC001604
- ETIM 5.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121421
- UL Recognized: Yes
- cUL Recognized: Yes
- EAC: Yes
- cULus Recognized: Yes
