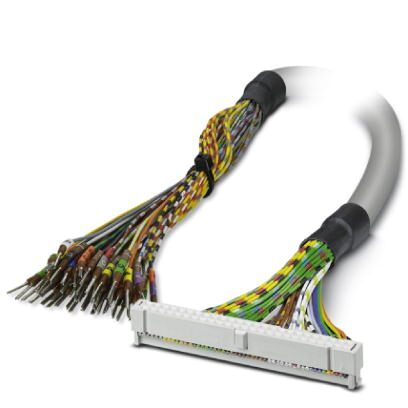

Phoenix Contact 2305363 50-Position Cable Assembly
The Phoenix Contact 2305363 is a pre-assembled cable assembly designed for connecting field devices to control systems. It features a 50-position connector strip and an open end with pre-labeled and ferrules-equipped wires, simplifying installation and reducing wiring errors. This cable assembly is suitable for various industrial automation and control applications where a 1:1 connection is required. Its robust construction and compliance with industry standards ensure reliable performance in demanding environments.
Phoenix Contact 2305363 50-Position Cable Assembly Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 257.7 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Nominal voltage UN: < 50 V AC / 60 V DC
- Max. current carrying capacity per path: 1 A
- Max. conductor resistance: 0.16 Ω/m
- Length of cable: 1.5 m
- Single wire, cross section: 0.14 mm²
- Single wire, cross section [AWG]: 26
- Conductor construction: Number of litz wires: 7
- Single wire, material: Cu tin-plated
- Test voltage: 0.8 kV
- External diameter: 10.3 mm
- Cable, preassembly: Insulation displacement, IEC 60352-4/DIN EN 60352-4
- Shielding: no
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Flame resistance: IEC 60332-1 / DIN VDE 0482 Part 332-1
- Connection name (module side): Field level
- Connection method (module side): IDC/FLK socket strip
- Number of connections (module side): 1
- Number of positions (module side): 50
- Pitch (module side): 2.54 mm
- Connection name (controller side): Controller level
- Connection method (controller side): Single wires
- Number of positions (controller side): 50
- Note: The wires are marked and fitted with ferrules.
- Connection in acc. with standard: CUL
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27249205
- eCl@ss 9.0: 27242220
- ETIM 2.0: EC000237
- ETIM 3.0: EC000237
- ETIM 4.0: EC000237
- ETIM 5.0: EC000237
- UNSPSC 6.01: 26121620
- UNSPSC 7.0901: 26121620
- UNSPSC 11: 26121620
- UNSPSC 12.01: 26121620
- UNSPSC 13.2: 26121620
