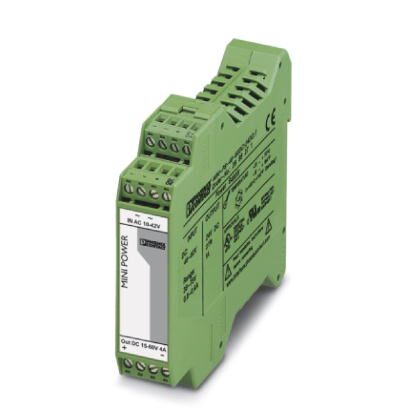

Phoenix Contact 2320199 Power Module
This AC feed module supplies a rectified and filtered power source to the MINI DC/DC converter, ensuring stable and reliable operation in industrial applications. It converts 10 V AC to 42 V AC input into 15 V DC to 60 V DC output, with an overall width of 22.5 mm and high efficiency of over 95.7%. Suitable for rail applications, it operates in ambient temperatures from -25°C to 70°C and withstands high humidity levels. The module is UL Listed, cUL Recognized, and complies with EN 50121-4 standards, helping to safeguard systems in demanding environments.
Phoenix Contact 2320199 Power Module Specifications:
- Input voltage: 10 V AC ... 42 V AC
- Output voltage: 15 V DC ... 60 V DC
- Dimensions: 22.5 mm width
- Ambient temperature (operation): -25 °C to 70 °C
- Ambient temperature (storage/transport): -40 °C to 85 °C
- Relative humidity (operation): < 95 %
- Degree of protection: IP20
- Climatic class: 3K3
- Efficiency: > 95.7 %
- Connection method: Pluggable screw connection
- Standards: EN 50121-4
- Certifications: UL Listed, cUL Recognized, EAC, IECEE CB Scheme
- Environmental compliance: China RoHS
- Applicable for rail applications and industrial environments
Buy the Phoenix Contact Series MINI-PS- 10- 42AC/15-60DC/3 Power Module: 2320199
Get the Phoenix Contact MINI-PS- 10- 42AC/15-60DC/3 power module online today. This compact, highly efficient AC to DC power supply ensures stable operation for industrial control applications. Its robust design and compliance with international standards guarantee safe and reliable performance. Perfect for rail and factory automation, it offers easy screw connection, wide temperature range, and high humidity tolerance. Purchase now to enhance your system’s power supply with this dependable, UL-listed module that delivers consistent, high-quality energy conversion for demanding environments.
Order your Phoenix Contact Series MINI-PS- 10- 42AC/15-60DC/3 power module today and ensure reliable power in your industrial control systems.
