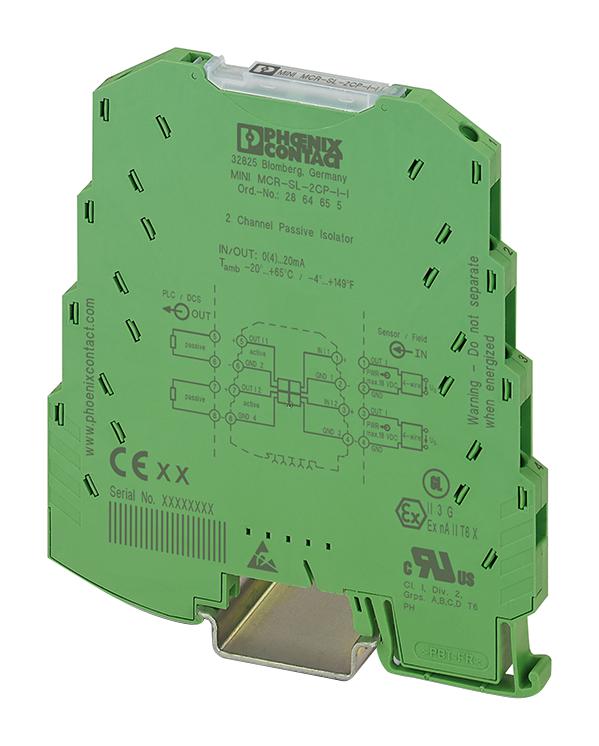

Phoenix Contact 2864655 2-Channel Loop-Powered Isolator
The PHOENIX CONTACT MINI MCR-SL-2CP-I-I is a highly compact, 2-channel passive isolator ideal for the electrical isolation of current signals without the need for auxiliary power. Its low voltage drop of just 1.7V and design width of only 6.2mm make it suitable for space-constrained applications. This isolator is commonly used in industrial automation, process control, and data acquisition systems to protect sensitive equipment from noise and ground loops while ensuring signal integrity. It supports both 0-20mA and 4-20mA current signals and is designed for reliable performance in harsh environments.
Phoenix Contact 2864655 2-Channel Loop-Powered Isolator Specifications:
- Packing unit: 1 STK
- GTIN: 4017918974893
- Weight per Piece (excluding packing): 100.000 g
- Custom tariff number: 85437090
- Country of origin: Germany
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 102.5 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Description of the input: Current input
- Number of inputs: 2
- Current input signal: 0 mA ... 20 mA, 4 mA ... 20 mA
- max. input voltage: 18 V
- Max. input current: 40 mA
- Response current: approx. 190 µA
- Input voltage limitation: < 2 V (20 mA)
- Voltage dissipation: 1.9 V (I = 20 mA)
- Output name: Current output
- Number of outputs: 2
- Current output signal: 0 mA ... 20 mA, 4 mA ... 20 mA
- Load/output load current output: < 600 Ω (at I = 20 mA output signal)
- Ripple: < 10 mVrms(at 600 Ω)
- Transmission Behavior: 1:1 to input signal
- Supply voltage range: no separate supply voltage necessary
- Power consumption: 34 mW (per channel)
- Connection method: Screw connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 12 mm
- Screw thread: M3
- No. of channels: 2
- Maximum transmission error: ≤ 0.1 % (of final value)
- Maximum temperature coefficient: ≤ 0.002 %/K (of measured value / 100 Ω load)
- Temperature coefficient, typical: < 0.002 %/K (of measured value / 100 Ω load)
- Additional error, load-dependent: < 0.03 % (of measured value / 100 Ω load)
- Limit frequency (3 dB): 75 Hz
- Step response (10-90%): 5 ms (at 600 Ω load)
- Electrical isolation: Basic insulation according to EN 61010
- Overvoltage category: II
- Degree of pollution: 2
- Rated insulation voltage: 50 V AC/DC
- Test voltage input/output: 1.5 kV (50 Hz, 1 min.)
- Test voltage channel/channel: 1.5 kV (50 Hz, 1 min.)
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2
- Color: green
- Housing material: PBT
- Mounting position: any
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA II T6 X
- UL, USA/Canada: UL 508 Recognized
- GL: GL EMC 2 D
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 2
